SKU: EXF314-SNR
SNR EXF314 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF314 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 36,886.05
Regular price
Sale price
Rs. 36,886.05
Taxes included.
In stock
Price Break
5+
Rs. 36,517.19
10+
Rs. 35,041.75
20+
Rs. 34,304.03
50+
Rs. 33,197.45
100+
Rs. 32,459.72
500+
Rs. 30,615.42
1000+
Rs. 25,820.24
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXF
- Bolt Hole Centres:
- 178mm
Technical
Technical

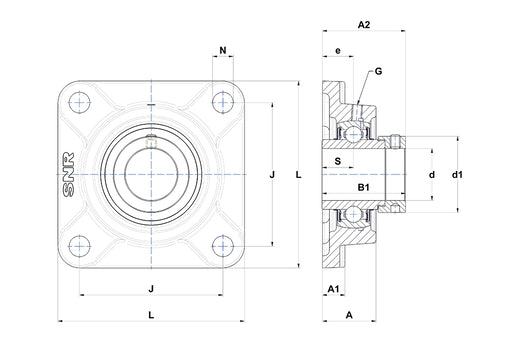

| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 61mm |
| A1 | 25mm |
| A2 | 93.95mm |
| B | 68.3mm |
| B1 | 92.1mm |
| d1 | 102mm |
| e | 36mm |
| J | 178mm |
| L | 226mm |
| N | 25mm |
| S | 34.15mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 104.26 kN |
| Static load C0 | 68 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 9.93 kg |
