SKU: EXF313-SNR

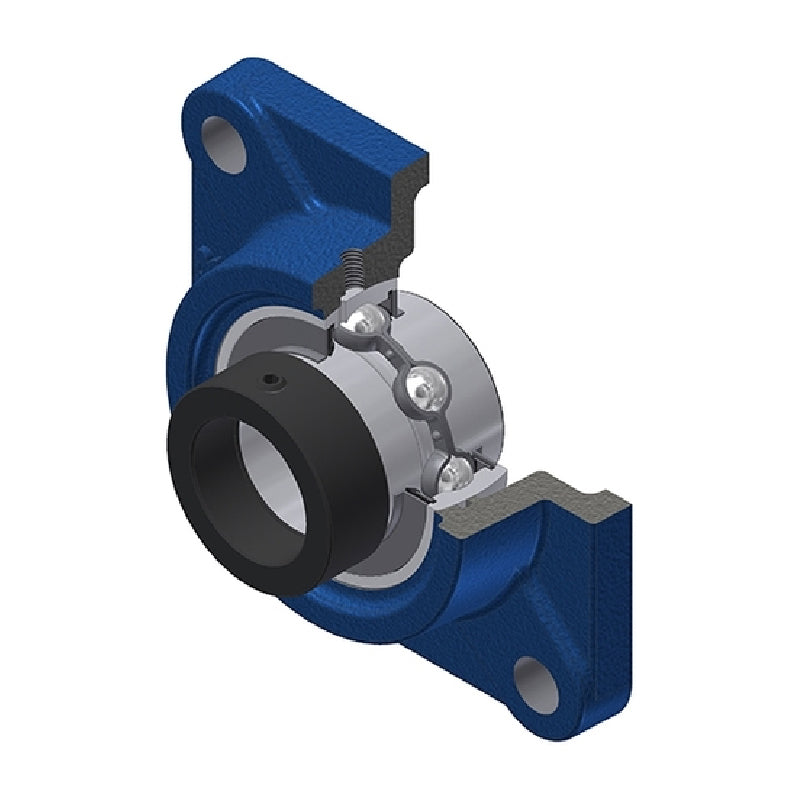

SNR EXF313 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF313 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 28,383.04
Regular price
Sale price
Rs. 28,383.04
Taxes included.
In stock
Price Break
5+
Rs. 28,099.21
10+
Rs. 26,963.89
20+
Rs. 26,396.23
50+
Rs. 25,544.74
100+
Rs. 24,977.08
500+
Rs. 23,557.92
1000+
Rs. 19,868.13
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- EXF
- Bolt Hole Centres:
- 166mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 58mm |
| A1 | 22mm |
| A2 | 86.2mm |
| B | 65.1mm |
| B1 | 85.7mm |
| d1 | 97mm |
| e | 33mm |
| J | 166mm |
| L | 208mm |
| N | 23mm |
| S | 32.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 93.86 kN |
| Static load C0 | 60.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 8.27 kg |
