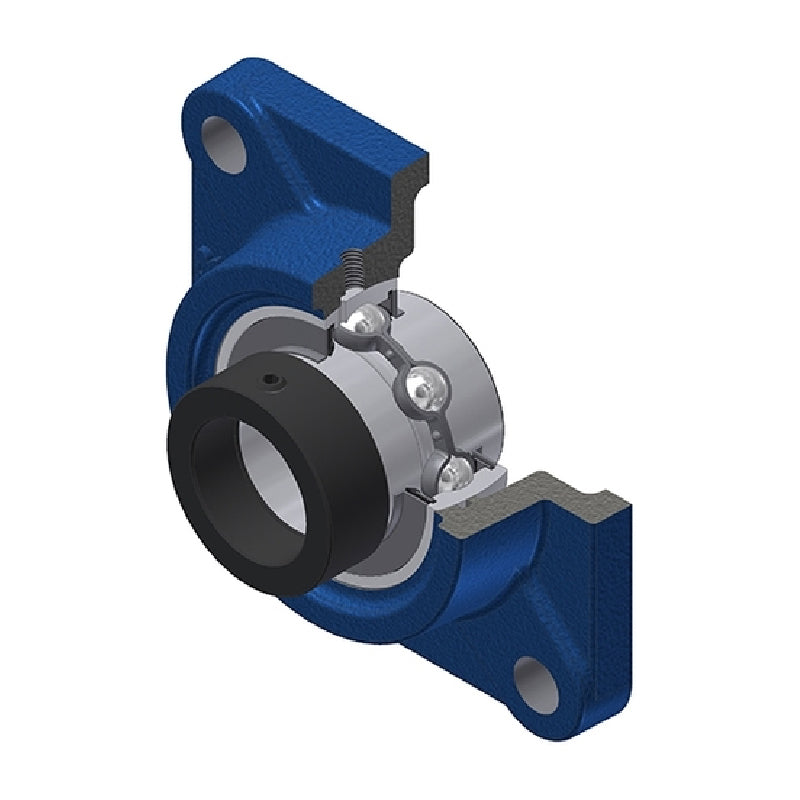

SNR EXF216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 19,743.05
Regular price
Sale price
Rs. 19,743.05
Taxes included.
In stock
Price Break
10+
Rs. 17,571.31
19+
Rs. 16,584.16
29+
Rs. 16,386.73
39+
Rs. 16,189.30
49+
Rs. 15,991.87
74+
Rs. 15,794.44
99+
Rs. 14,807.29
199+
Rs. 14,609.86
249+
Rs. 14,412.43
499+
Rs. 14,215.00
999+
Rs. 13,820.14
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXF
- Bolt Hole Centres:
- 165mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 57mm |
| A1 | 22mm |
| A2 | 91.9mm |
| B | 74.6mm |
| B1 | 95.2mm |
| d1 | 110mm |
| e | 34mm |
| J | 165mm |
| L | 208mm |
| N | 23mm |
| S | 37.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 7.19 kg |
