SKU: EXF209-SNR

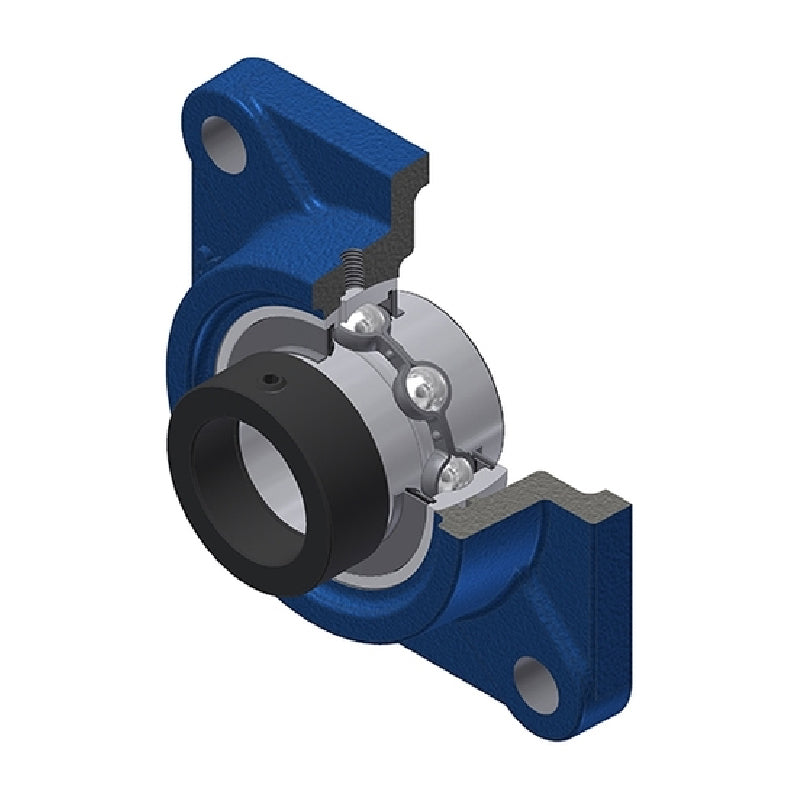

SNR EXF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 8,504.29
Regular price
Sale price
Rs. 8,504.29
Taxes included.
In stock
Price Break
5+
Rs. 8,419.25
10+
Rs. 8,079.08
20+
Rs. 7,908.99
50+
Rs. 7,653.86
100+
Rs. 7,483.78
500+
Rs. 7,058.56
1000+
Rs. 5,953.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- EXF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 16mm |
| A2 | 56.9mm |
| B | 42.8mm |
| B1 | 56.3mm |
| d1 | 62mm |
| e | 22mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| S | 21.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.31 kg |
