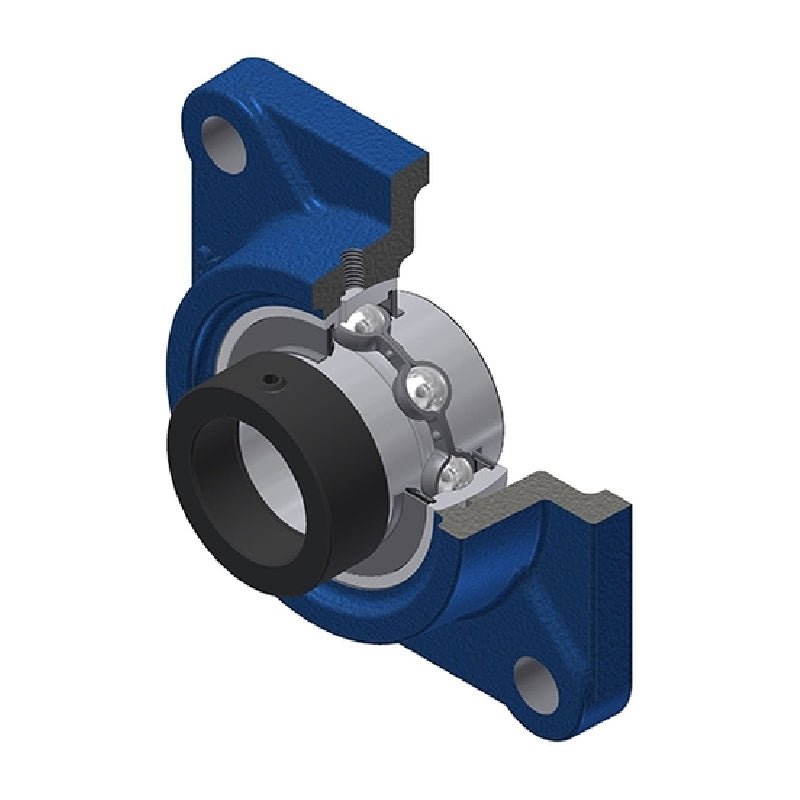

SNR EXF208 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF208 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 5,429.28
Regular price
Sale price
Rs. 5,429.28
Taxes included.
In stock
Price Break
10+
Rs. 4,832.06
19+
Rs. 4,560.60
29+
Rs. 4,506.30
39+
Rs. 4,452.01
49+
Rs. 4,397.72
74+
Rs. 4,343.42
99+
Rs. 4,071.96
199+
Rs. 4,017.67
249+
Rs. 3,963.37
499+
Rs. 3,909.08
999+
Rs. 3,800.50
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 15mm |
| A2 | 55.9mm |
| B | 42.8mm |
| B1 | 56.3mm |
| d1 | 58mm |
| e | 21mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| S | 21.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.03 kg |
