SKU: EXEHE208-SNR

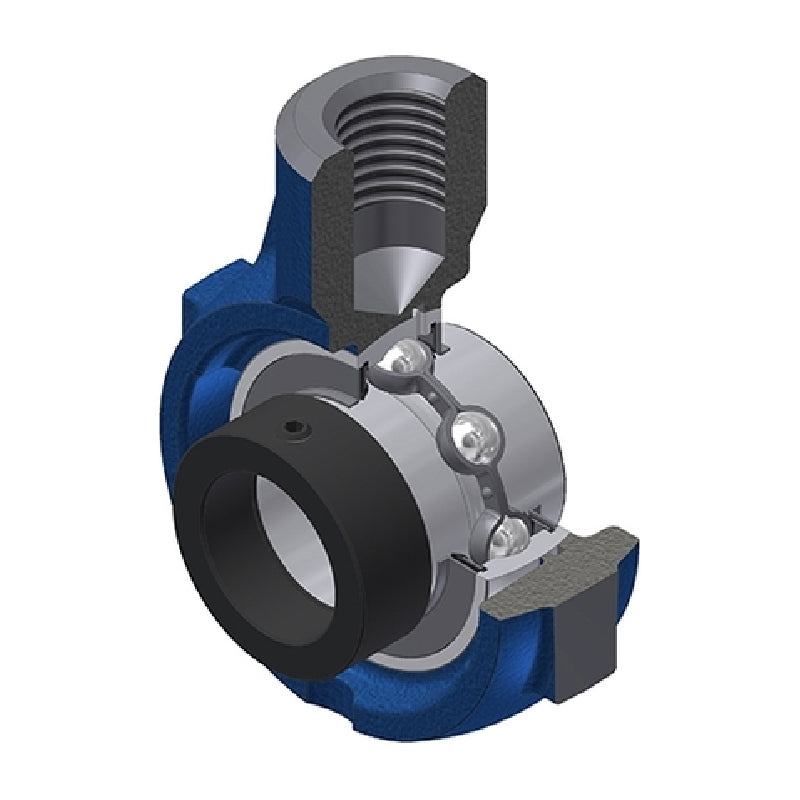

SNR EXEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
SNR EXEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price
Rs. 5,676.35
Regular price
Sale price
Rs. 5,676.35
Taxes included.
In stock
Price Break
10+
Rs. 5,051.95
19+
Rs. 4,768.13
29+
Rs. 4,711.37
39+
Rs. 4,654.61
49+
Rs. 4,597.84
74+
Rs. 4,541.08
99+
Rs. 4,257.26
199+
Rs. 4,200.50
249+
Rs. 4,143.74
499+
Rs. 4,086.97
999+
Rs. 3,973.45
Description
Description
EXEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A2 | 40mm |
| B1 | 56.3mm |
| d1 | 58mm |
| E | 24mm |
| H | 100mm |
| L | 135mm |
| L1 | 85mm |
| L3 | 45mm |
| S | 21.4mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.68 kg |
