SKU: EXC314-SNR

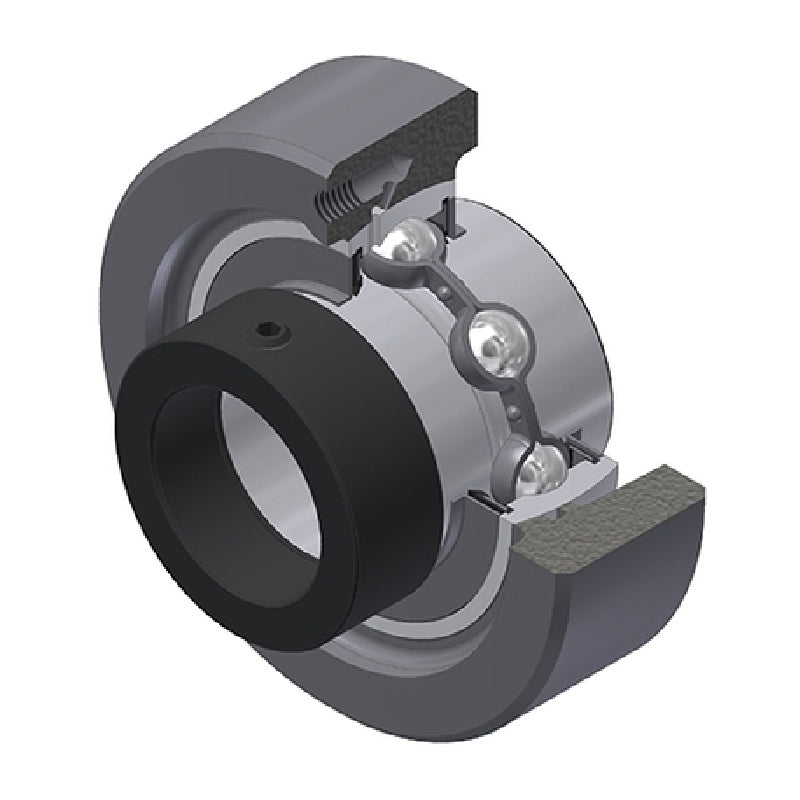

SNR EXC314 Metric Cast Iron Cartridge Unit with 70mm Bore Insert 52mm Outside Dia - Allow 2-3 Days
SNR EXC314 Metric Cast Iron Cartridge Unit with 70mm Bore Insert 52mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 42,580.00
ex VAT
Regular price
Sale price
Rs. 42,580.00
ex VAT
In stock
Price Break
5+
Rs. 42,154.20
10+
Rs. 40,451.00
20+
Rs. 39,599.40
50+
Rs. 38,322.00
100+
Rs. 37,470.40
500+
Rs. 35,341.40
1000+
Rs. 29,806.00
Couldn't load pickup availability
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 52mm |
| A3 | 2.5mm |
| B1 | 92.1mm |
| d1 | 102mm |
| H | 180mm |
| S | 34.15mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 104.26 kN |
| Static load C0 | 68 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 7.3 kg |
