SKU: EXC310-SNR

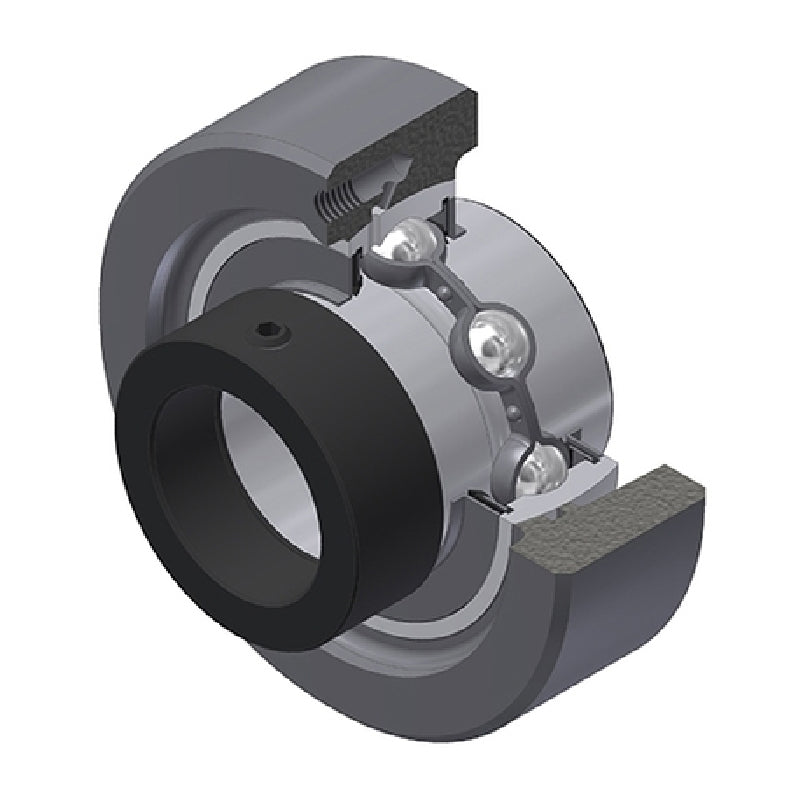

SNR EXC310 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
SNR EXC310 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 17,023.81
ex VAT
Regular price
Sale price
Rs. 17,023.81
ex VAT
In stock
Price Break
5+
Rs. 16,853.57
10+
Rs. 16,172.62
20+
Rs. 15,832.14
50+
Rs. 15,321.43
100+
Rs. 14,980.95
500+
Rs. 14,129.76
1000+
Rs. 11,916.67
Couldn't load pickup availability
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A3 | 2.5mm |
| B1 | 66.6mm |
| d1 | 76.2mm |
| H | 140mm |
| S | 24.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3.56 kg |
