SKU: EXC210-SNR
SNR EXC210 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
SNR EXC210 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 6,780.30
ex VAT
Regular price
Sale price
Rs. 6,780.30
ex VAT
In stock
Price Break
10+
Rs. 6,034.47
19+
Rs. 5,695.45
29+
Rs. 5,627.65
39+
Rs. 5,559.85
49+
Rs. 5,492.04
74+
Rs. 5,424.24
99+
Rs. 5,085.23
199+
Rs. 5,017.42
249+
Rs. 4,949.62
499+
Rs. 4,881.82
999+
Rs. 4,746.21
Couldn't load pickup availability
Description
Description

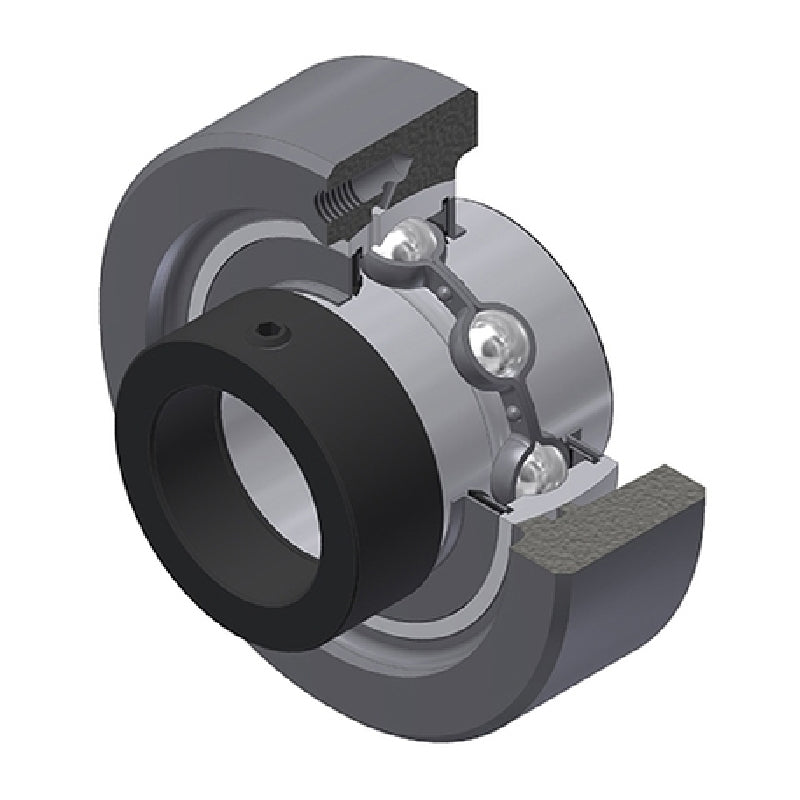

EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXC
Technical
Technical

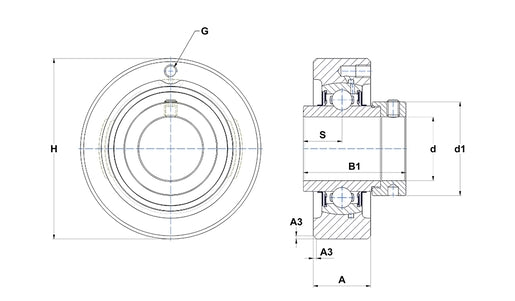

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 31mm |
| A3 | 2mm |
| B1 | 62.7mm |
| d1 | 67.2mm |
| H | 120mm |
| S | 24.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.11 kg |
