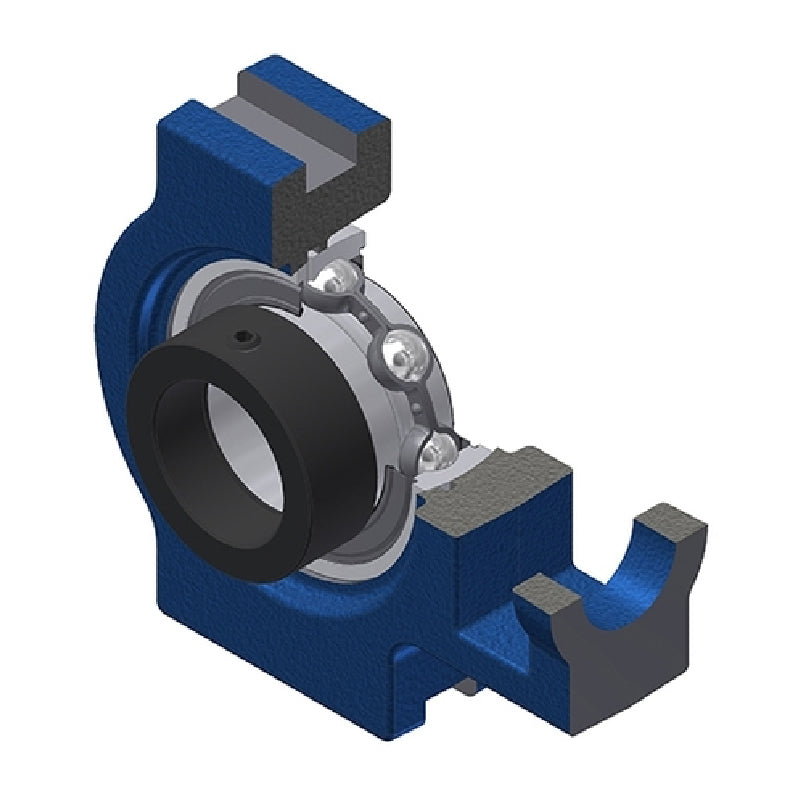

SNR EST209 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR EST209 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
Rs. 6,663.38
Regular price
Sale price
Rs. 6,663.38
Taxes included.
In stock
Price Break
10+
Rs. 5,930.41
19+
Rs. 5,597.24
29+
Rs. 5,530.61
39+
Rs. 5,463.97
49+
Rs. 5,397.34
74+
Rs. 5,330.70
99+
Rs. 4,997.54
199+
Rs. 4,930.90
249+
Rs. 4,864.27
499+
Rs. 4,797.63
999+
Rs. 4,664.37
Description
Description
EST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- EST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 35mm |
| B1 | 43.7mm |
| d1 | 62mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 87mm |
| L2 | 16mm |
| L3 | 83mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.39 kg |
