SKU: EST204-SNR

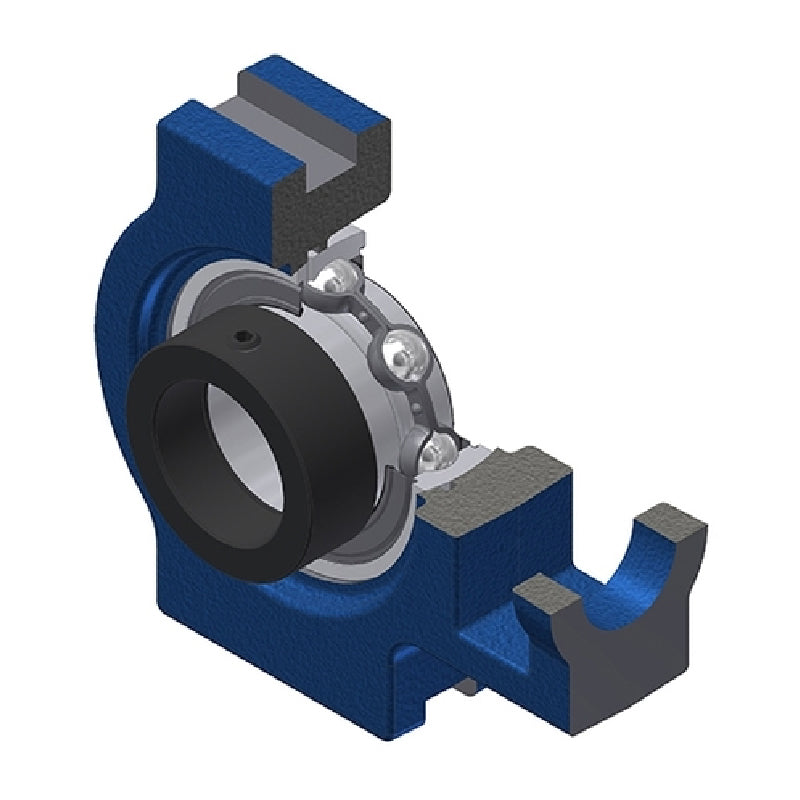

SNR EST204 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
SNR EST204 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
Regular price
Rs. 2,879.14
Regular price
Sale price
Rs. 2,879.14
Taxes included.
In stock
Price Break
10+
Rs. 2,562.43
19+
Rs. 2,418.48
29+
Rs. 2,389.69
39+
Rs. 2,360.89
49+
Rs. 2,332.10
74+
Rs. 2,303.31
99+
Rs. 2,159.36
199+
Rs. 2,130.56
249+
Rs. 2,101.77
499+
Rs. 2,072.98
999+
Rs. 2,015.40
Description
Description
EST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- EST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 21mm |
| B1 | 30.9mm |
| d1 | 32.4mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 94mm |
| L1 | 61mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.75 kg |
