SKU: ESPLE210-SNR
SNR ESPLE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPLE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 5,676.35
Regular price
Sale price
Rs. 5,676.35
Taxes included.
In stock
Price Break
10+
Rs. 5,051.95
19+
Rs. 4,768.13
29+
Rs. 4,711.37
39+
Rs. 4,654.61
49+
Rs. 4,597.84
74+
Rs. 4,541.08
99+
Rs. 4,257.26
199+
Rs. 4,200.50
249+
Rs. 4,143.74
499+
Rs. 4,086.97
999+
Rs. 3,973.45
Description
Description

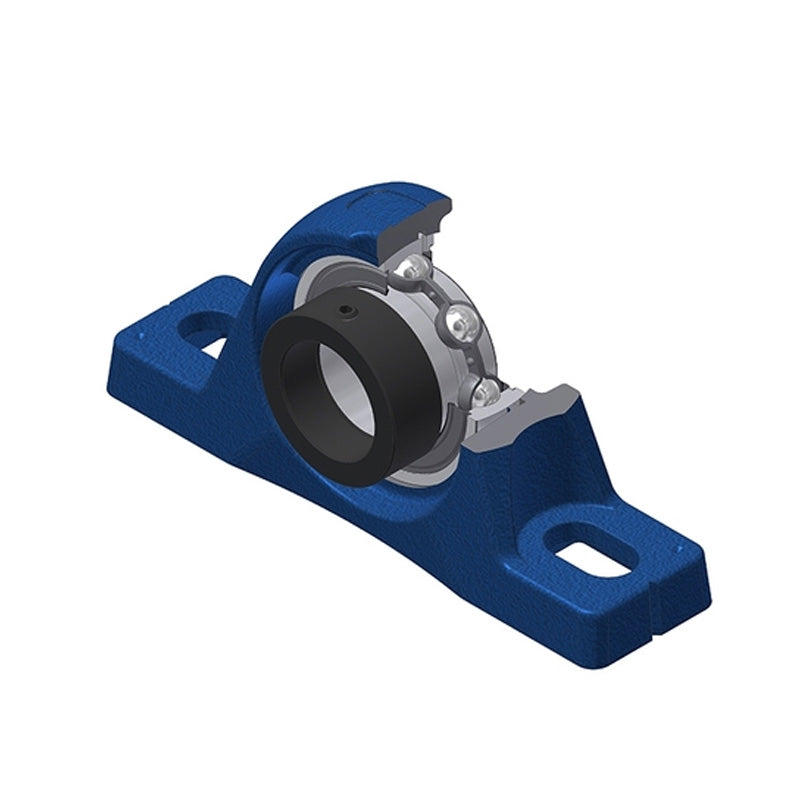

ESPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESPLE
- Bolt Hole Centres:
- 164mm
Technical
Technical

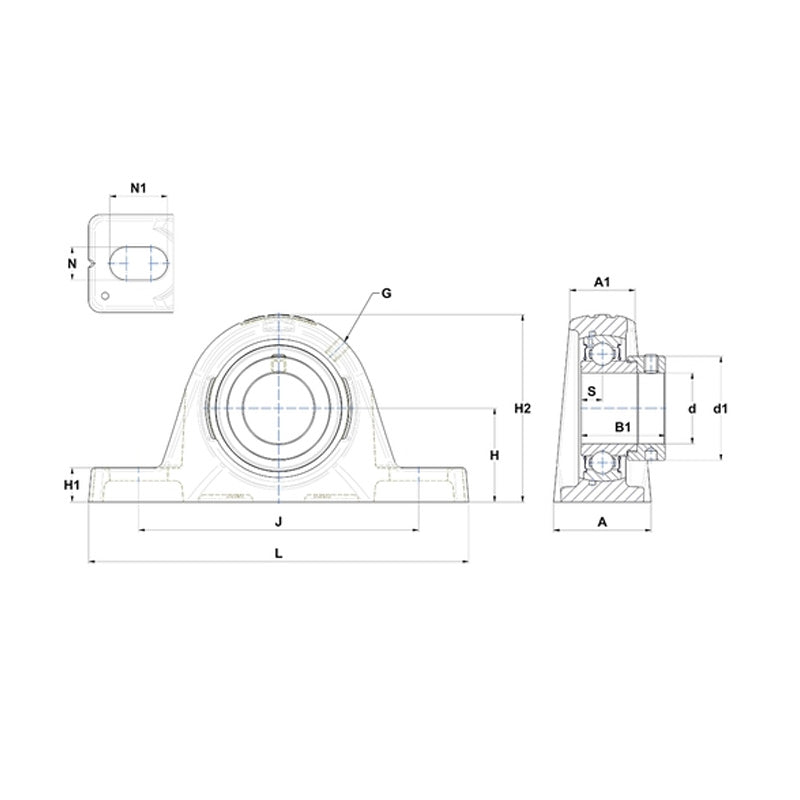

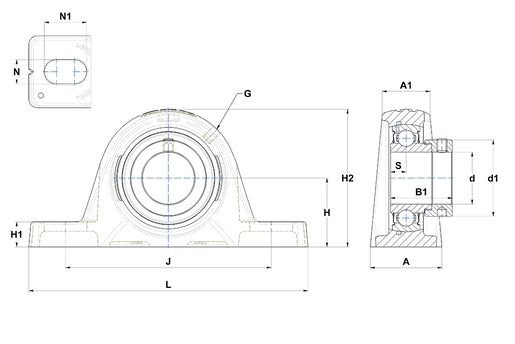

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 55mm |
| A1 | 36mm |
| B | 30.2mm |
| d1 | 67.2mm |
| H | 55.6mm |
| H1 | 19.3mm |
| H2 | 114mm |
| J | 164mm |
| L | 214mm |
| N | 14mm |
| N1 | 27mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.9 kg |
