SKU: ESPLE208-SNR
SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 4,429.45
Regular price
Sale price
Rs. 4,429.45
Taxes included.
In stock
Price Break
10+
Rs. 3,942.21
19+
Rs. 3,720.74
29+
Rs. 3,676.44
39+
Rs. 3,632.15
49+
Rs. 3,587.85
74+
Rs. 3,543.56
99+
Rs. 3,322.09
199+
Rs. 3,277.79
249+
Rs. 3,233.50
499+
Rs. 3,189.20
999+
Rs. 3,100.62
Description
Description

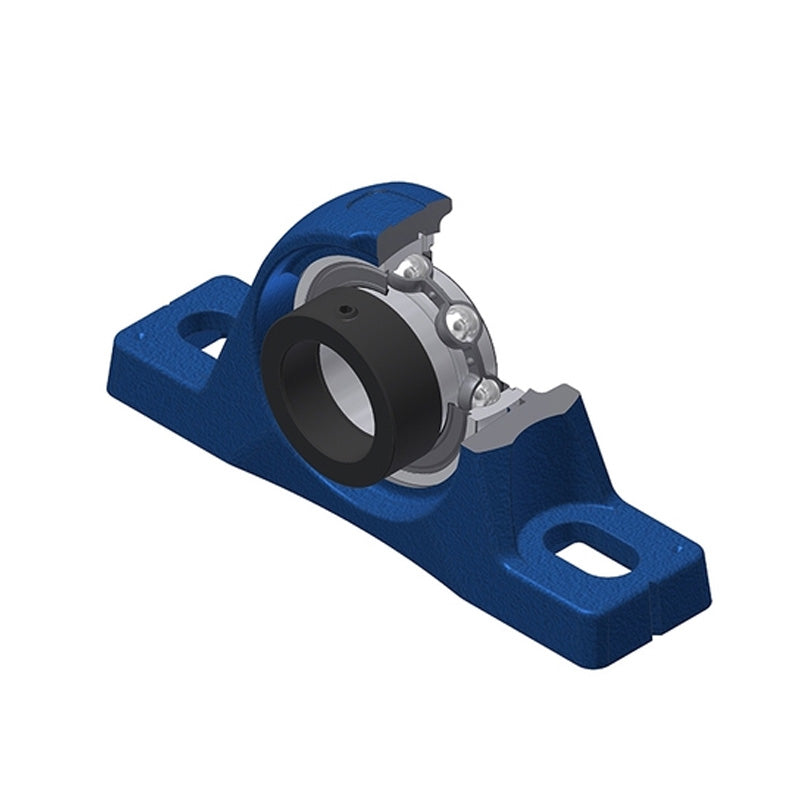

ESPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESPLE
- Bolt Hole Centres:
- 137.5mm
Technical
Technical

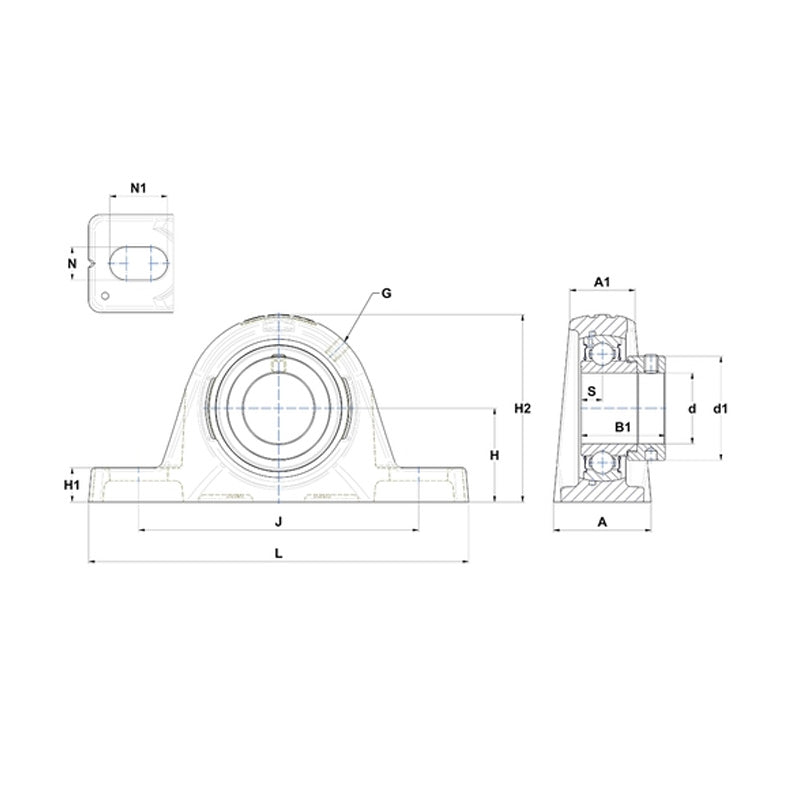

| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 51mm |
| A1 | 34.5mm |
| B | 30.2mm |
| d1 | 58mm |
| H | 49.2mm |
| H1 | 18.5mm |
| H2 | 98.5mm |
| J | 137.5mm |
| L | 180.5mm |
| N | 14mm |
| N1 | 24.5mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.95 kg |
