SKU: ESPE212-SNR

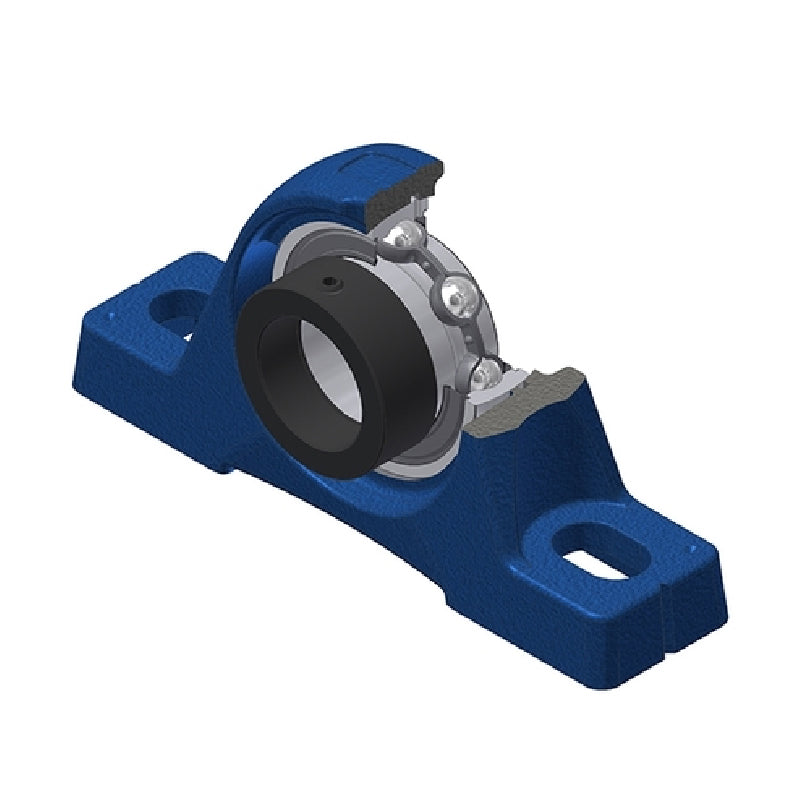

SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 8,369.87
Regular price
Sale price
Rs. 8,369.87
Taxes included.
In stock
Price Break
10+
Rs. 7,449.18
19+
Rs. 7,030.69
29+
Rs. 6,946.99
39+
Rs. 6,863.29
49+
Rs. 6,779.59
74+
Rs. 6,695.90
99+
Rs. 6,277.40
199+
Rs. 6,193.70
249+
Rs. 6,110.01
499+
Rs. 6,026.31
999+
Rs. 5,858.91
Description
Description
ESPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- ESPE
- Bolt Hole Centres:
- 190mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 60mm |
| A1 | 42mm |
| B | 33.4mm |
| d1 | 82mm |
| H | 69.9mm |
| H1 | 25mm |
| H2 | 140mm |
| J | 190mm |
| L | 240mm |
| L1 | 71mm |
| N | 18mm |
| N1 | 28mm |
| S | 12mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.5 kg |
