SKU: ESPAE202N-SNR
SNR ESPAE202N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
SNR ESPAE202N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
Regular price
Rs. 12,763.47
Regular price
Sale price
Rs. 12,763.47
Taxes included.
In stock
Price Break
5+
Rs. 12,635.84
10+
Rs. 12,125.30
20+
Rs. 11,870.03
50+
Rs. 11,487.12
100+
Rs. 11,231.85
500+
Rs. 10,593.68
1000+
Rs. 8,934.43
Description
Description
|

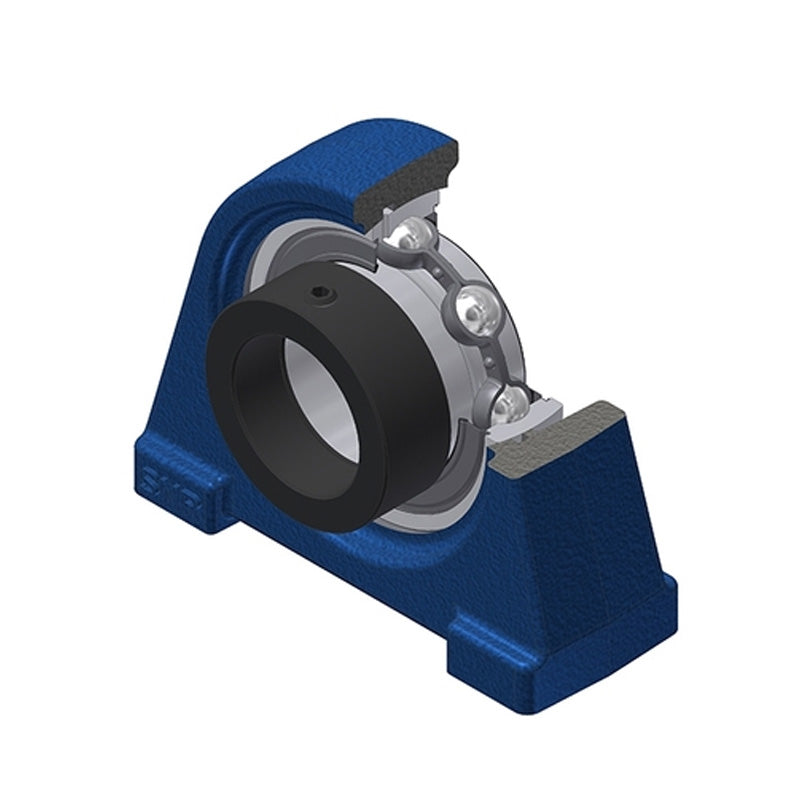

ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- ESPAE
- Bolt Hole Centres:
- 47mm
Technical
Technical

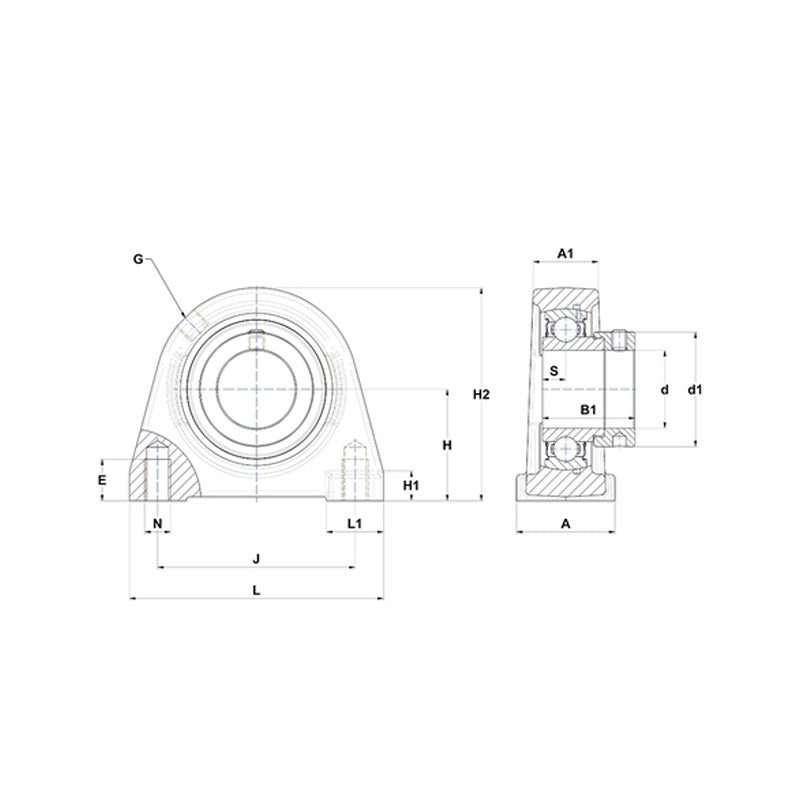

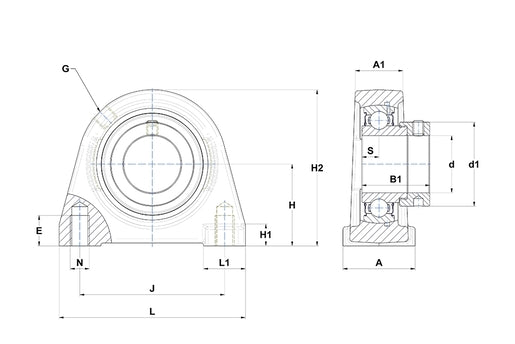

| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 30mm |
| A1 | 18mm |
| B | 19.1mm |
| d1 | 27.2mm |
| E | 10mm |
| H | 30.2mm |
| H1 | 9mm |
| H2 | 57mm |
| J | 47mm |
| L | 63mm |
| L1 | 17.5mm |
| N | M8 |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.43 kg |
