SKU: ESPA204-SNR
SNR ESPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore
SNR ESPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore
Regular price
Rs. 3,016.12
Regular price
Sale price
Rs. 3,016.12
Taxes included.
In stock
Price Break
10+
Rs. 2,684.35
19+
Rs. 2,533.54
29+
Rs. 2,503.38
39+
Rs. 2,473.22
49+
Rs. 2,443.06
74+
Rs. 2,412.90
99+
Rs. 2,262.09
199+
Rs. 2,231.93
249+
Rs. 2,201.77
499+
Rs. 2,171.61
999+
Rs. 2,111.28
Description
Description
|

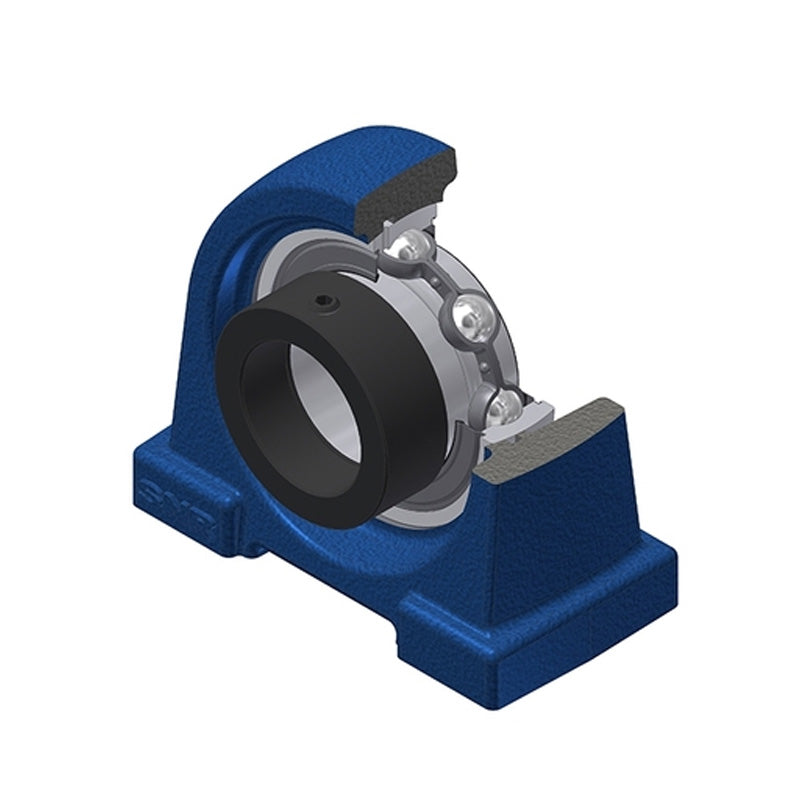

ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESPA
- Bolt Hole Centres:
- 52mm
Technical
Technical

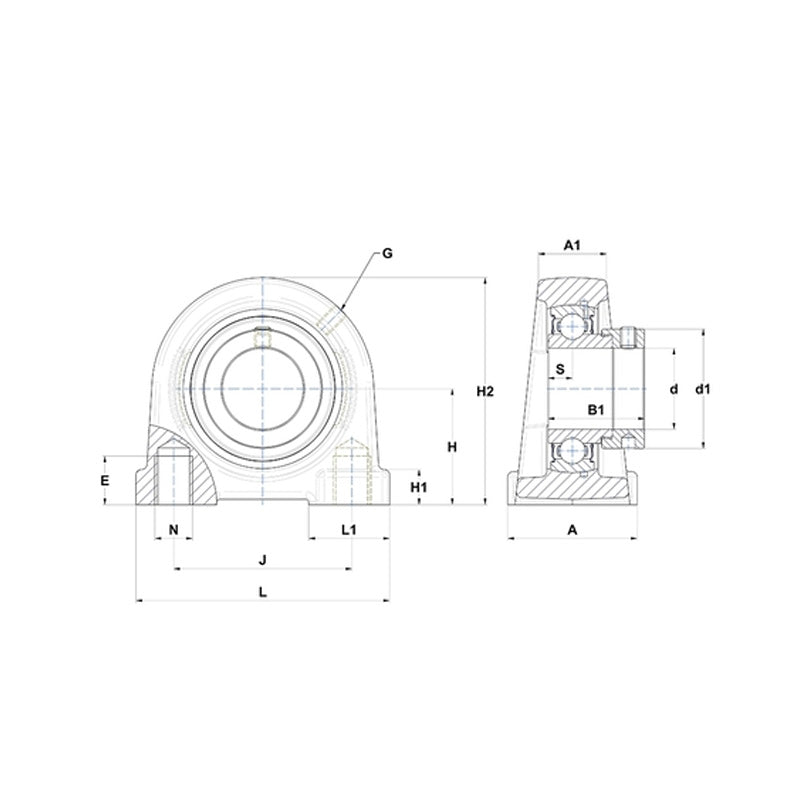

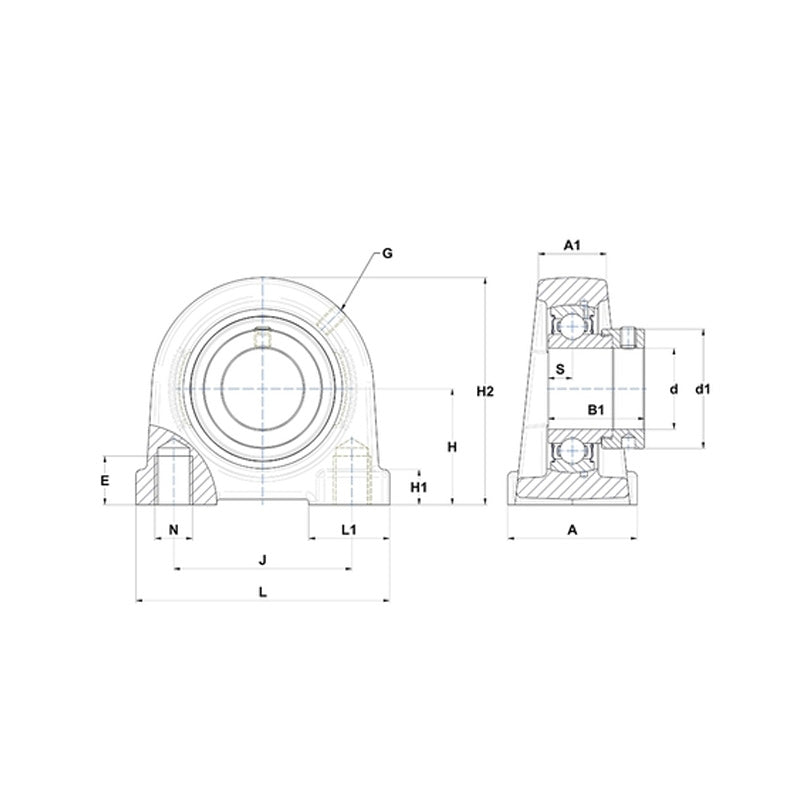

| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 40mm |
| A1 | 22mm |
| B | 21.4mm |
| d1 | 32.4mm |
| E | 13mm |
| H | 30.2mm |
| H1 | 11mm |
| H2 | 62mm |
| J | 52mm |
| L | 76mm |
| L1 | 22mm |
| N | M10 |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.55 kg |
