SKU: ESP206-19-SNR

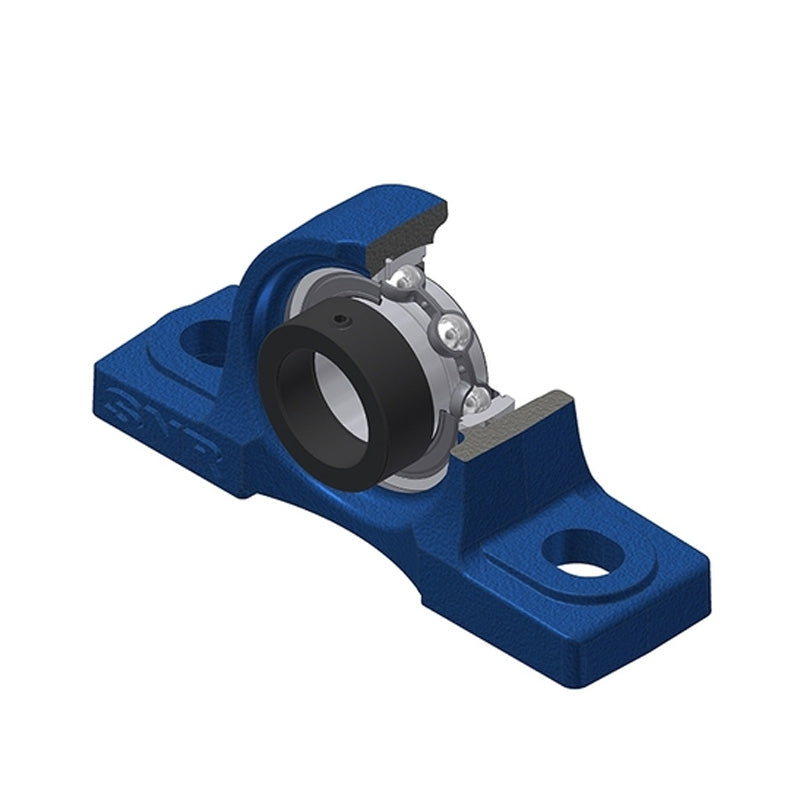

SNR ESP206-19 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/16 inch Eccentric Collar Insert - Allow 2-3 Days
SNR ESP206-19 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 4,535.70
Regular price
Sale price
Rs. 4,535.70
Taxes included.
In stock
Price Break
5+
Rs. 4,490.34
10+
Rs. 4,308.92
20+
Rs. 4,218.20
50+
Rs. 4,082.13
100+
Rs. 3,991.42
500+
Rs. 3,764.63
1000+
Rs. 3,174.99
Description
Description
ESP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- ESP
- Bolt Hole Centres:
- 121mm
Technical
Technical

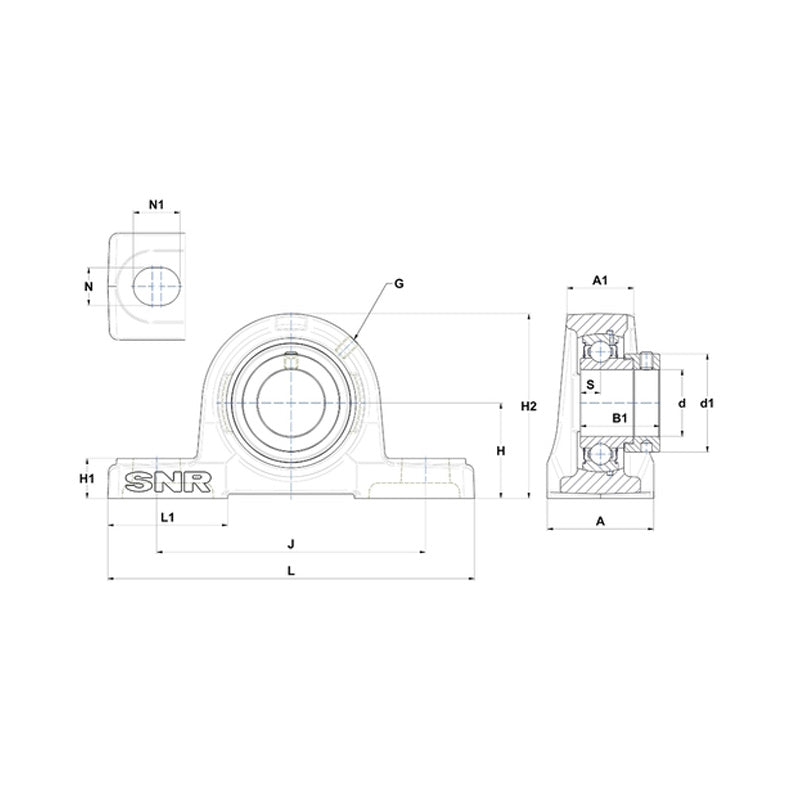

| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-3/16 inch |
| A | 48mm |
| A1 | 30mm |
| B | 23.8mm |
| d1 | 44.1mm |
| H | 42.9mm |
| H1 | 18mm |
| H2 | 83mm |
| J | 121mm |
| L | 165mm |
| L1 | 54mm |
| N | 17mm |
| N1 | 21mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.35 kg |
