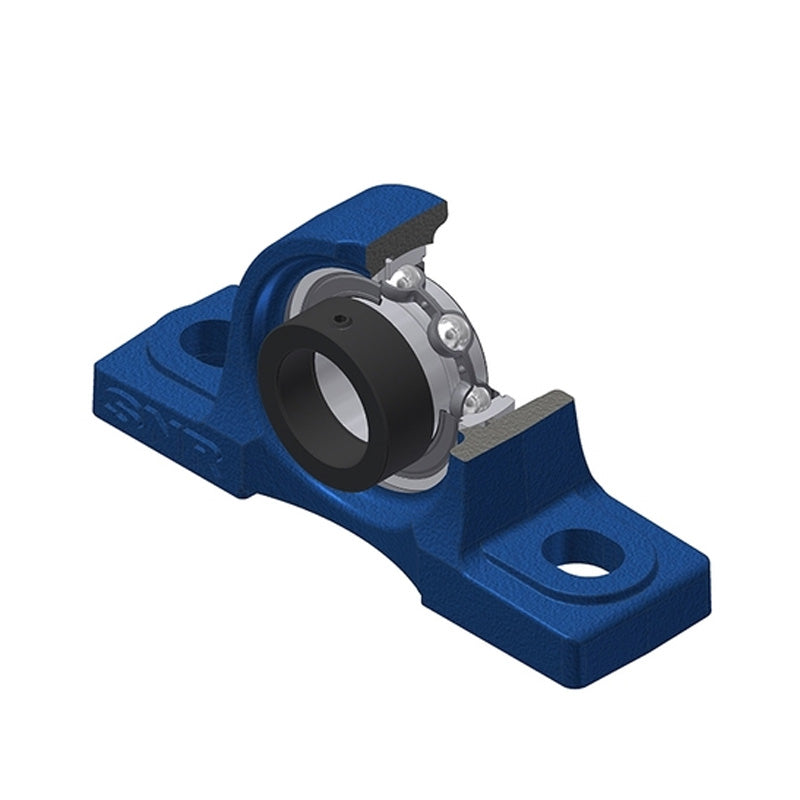

SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 3,016.12
Regular price
Sale price
Rs. 3,016.12
Taxes included.
In stock
Price Break
10+
Rs. 2,684.35
19+
Rs. 2,533.54
29+
Rs. 2,503.38
39+
Rs. 2,473.22
49+
Rs. 2,443.06
74+
Rs. 2,412.90
99+
Rs. 2,262.09
199+
Rs. 2,231.93
249+
Rs. 2,201.77
499+
Rs. 2,171.61
999+
Rs. 2,111.28
Description
Description
ESP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESP
- Bolt Hole Centres:
- 105mm
Technical
Technical

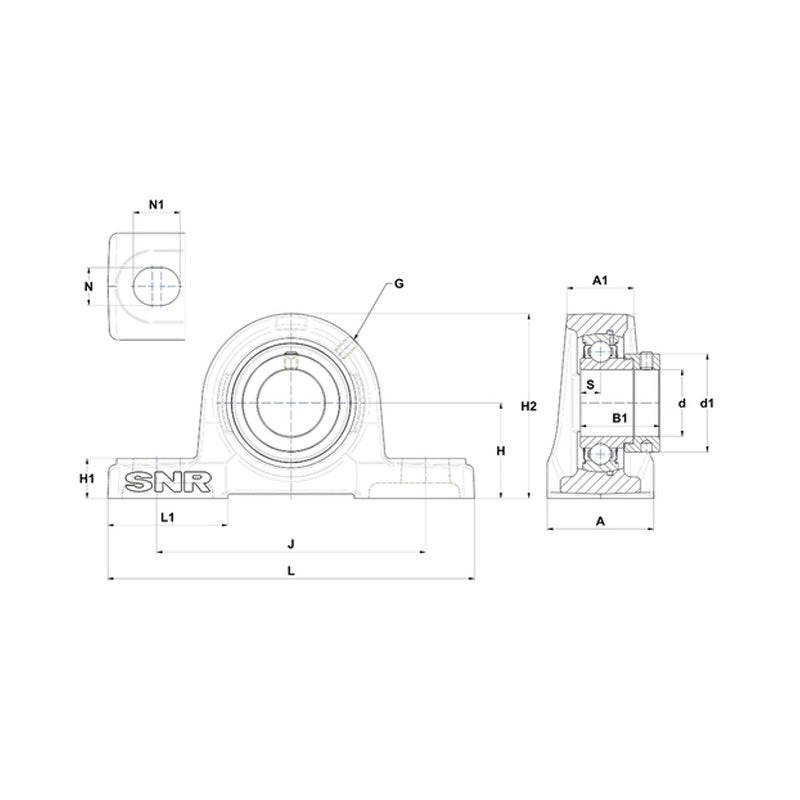

| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 38mm |
| A1 | 26mm |
| B | 21.4mm |
| d1 | 37.4mm |
| H | 36.5mm |
| H1 | 16mm |
| H2 | 70mm |
| J | 105mm |
| L | 140mm |
| L1 | 42mm |
| N | 13mm |
| N1 | 19mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.79 kg |
