SKU: ESFTE209-SNR

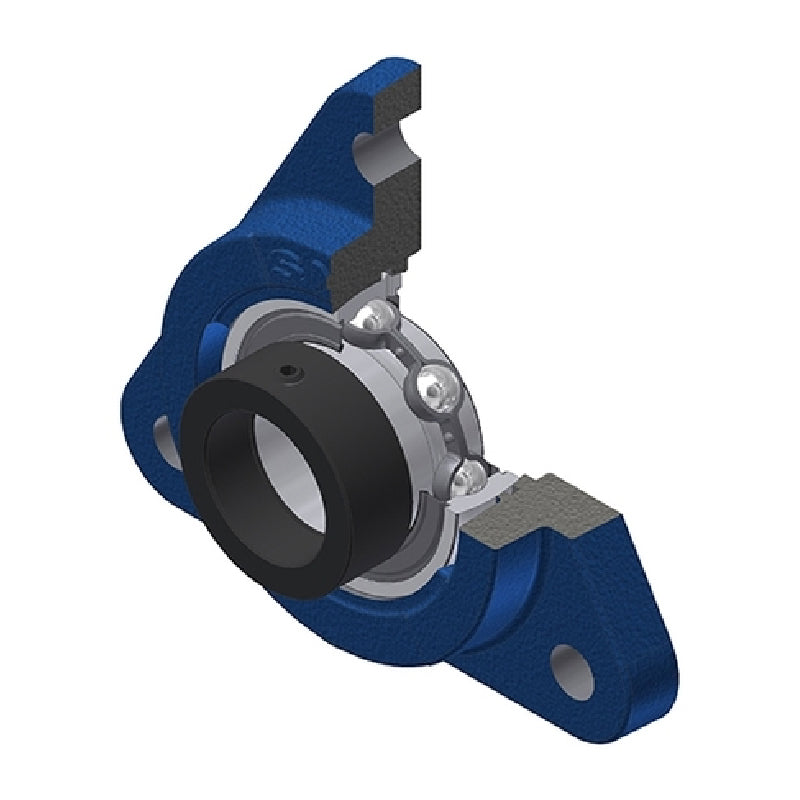

SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
Rs. 6,170.50
Regular price
Sale price
Rs. 6,170.50
Taxes included.
In stock
Price Break
10+
Rs. 5,491.75
19+
Rs. 5,183.22
29+
Rs. 5,121.52
39+
Rs. 5,059.81
49+
Rs. 4,998.11
74+
Rs. 4,936.40
99+
Rs. 4,627.88
199+
Rs. 4,566.17
249+
Rs. 4,504.47
499+
Rs. 4,442.76
999+
Rs. 4,319.35
Description
Description
ESFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESFTE
- Bolt Hole Centres:
- 160mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 33mm |
| A1 | 16mm |
| A2 | 51.9mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 62mm |
| e | 19.2mm |
| H | 150mm |
| H1 | 55mm |
| J | 160mm |
| N | 14mm |
| S | 11mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.09 kg |
