SKU: ESFLZ210-SNR

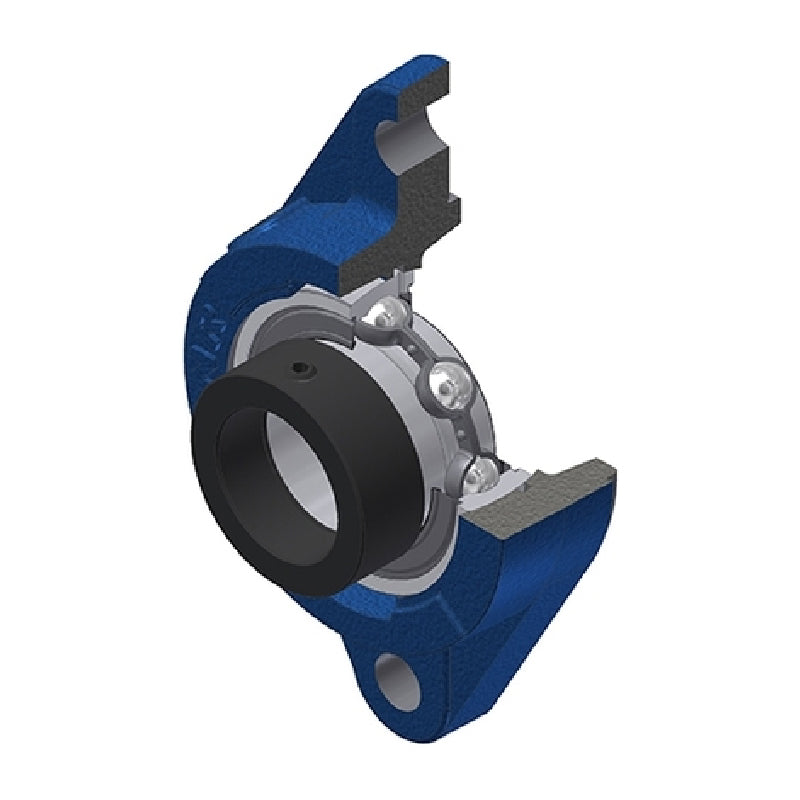

SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 6,910.45
Regular price
Sale price
Rs. 6,910.45
Taxes included.
In stock
Price Break
10+
Rs. 6,150.30
19+
Rs. 5,804.78
29+
Rs. 5,735.67
39+
Rs. 5,666.57
49+
Rs. 5,597.46
74+
Rs. 5,528.36
99+
Rs. 5,182.84
199+
Rs. 5,113.73
249+
Rs. 5,044.63
499+
Rs. 4,975.52
999+
Rs. 4,837.32
Description
Description
ESFLZ200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESFLZ
- Bolt Hole Centres:
- 157mm
Technical
Technical

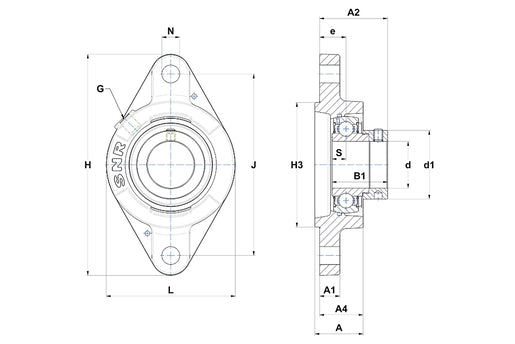

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 41mm |
| A1 | 13mm |
| A2 | 56.7mm |
| A4 | 37mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 67.2mm |
| e | 24mm |
| H | 190mm |
| H3 | 105mm |
| J | 157mm |
| L | 116mm |
| N | 14mm |
| S | 11mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.1 kg |
