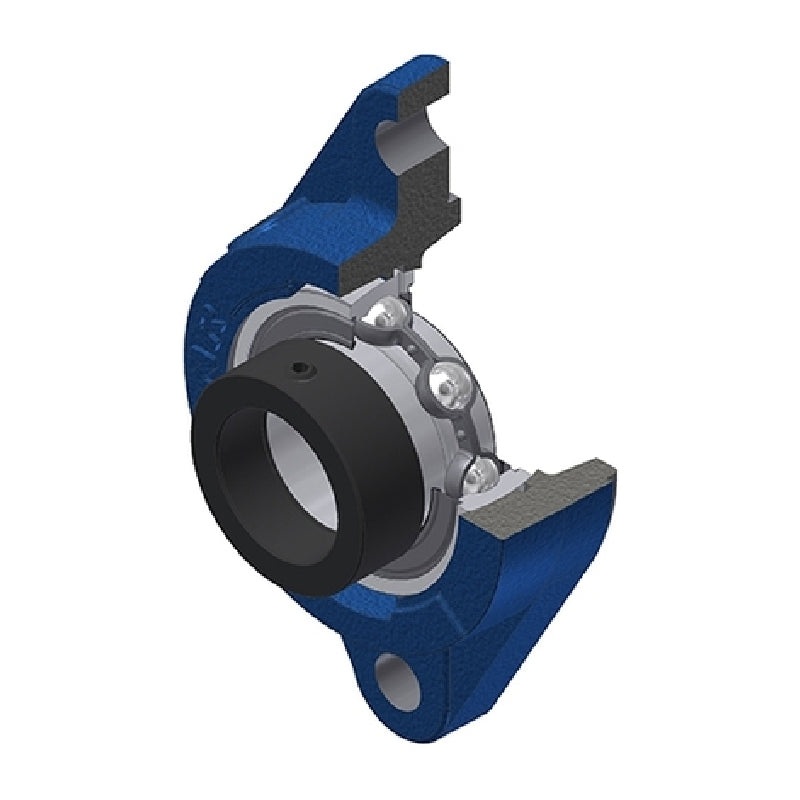

SNR ESFLZ206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLZ206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 5,104.11
Regular price
Sale price
Rs. 5,104.11
Taxes included.
In stock
Price Break
5+
Rs. 5,053.07
10+
Rs. 4,848.90
20+
Rs. 4,746.82
50+
Rs. 4,593.70
100+
Rs. 4,491.62
500+
Rs. 4,236.41
1000+
Rs. 3,572.88
Description
Description
ESFLZ200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- ESFLZ
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 30mm |
| A1 | 12mm |
| A2 | 43.7mm |
| A4 | 27mm |
| B | 23.8mm |
| B1 | 35.7mm |
| d1 | 44.1mm |
| e | 17mm |
| H | 142mm |
| H3 | 80mm |
| J | 116.5mm |
| L | 83mm |
| N | 11.5mm |
| S | 9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.93 kg |
