SKU: ESFLE212-SNR

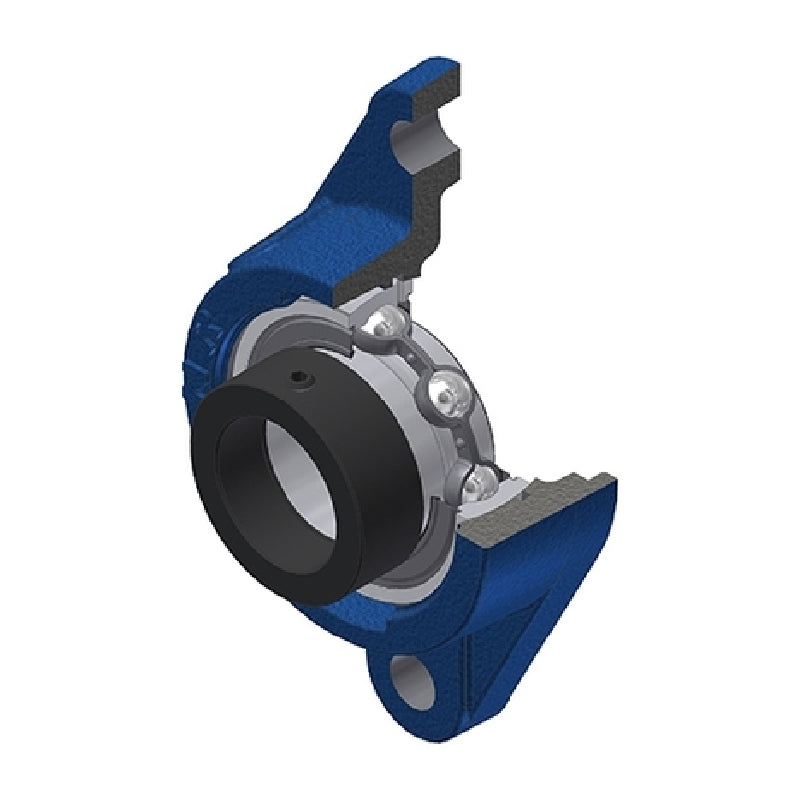

SNR ESFLE212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 8,597.74
Regular price
Sale price
Rs. 8,597.74
Taxes included.
In stock
Price Break
10+
Rs. 7,651.99
19+
Rs. 7,222.10
29+
Rs. 7,136.12
39+
Rs. 7,050.15
49+
Rs. 6,964.17
74+
Rs. 6,878.19
99+
Rs. 6,448.31
199+
Rs. 6,362.33
249+
Rs. 6,276.35
499+
Rs. 6,190.37
999+
Rs. 6,018.42
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 202mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 50.4mm |
| A1 | 16mm |
| A2 | 71.3mm |
| B | 33.4mm |
| B1 | 49.3mm |
| d1 | 82mm |
| e | 34mm |
| H | 238mm |
| J | 202mm |
| L | 138mm |
| N | 18mm |
| S | 12mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.4 kg |
