SKU: ESFLE201-SNR

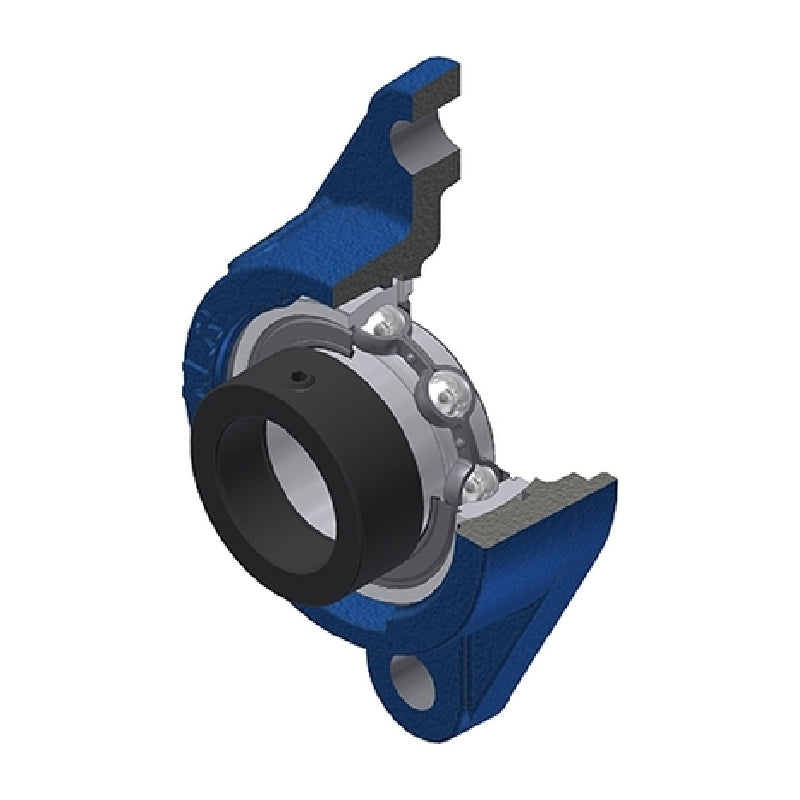

SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 2,838.18
Regular price
Sale price
Rs. 2,838.18
Taxes included.
In stock
Price Break
10+
Rs. 2,525.98
19+
Rs. 2,384.07
29+
Rs. 2,355.69
39+
Rs. 2,327.31
49+
Rs. 2,298.93
74+
Rs. 2,270.54
99+
Rs. 2,128.64
199+
Rs. 2,100.25
249+
Rs. 2,071.87
499+
Rs. 2,043.49
999+
Rs. 1,986.73
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 12mm |
| A | 26mm |
| A1 | 9.5mm |
| A2 | 39.1mm |
| B | 19mm |
| B1 | 28.6mm |
| d1 | 27.2mm |
| e | 17mm |
| H | 99mm |
| J | 76.5mm |
| L | 57mm |
| N | 11.5mm |
| S | 6.5mm |
| G | M6 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.4 kg |
