SKU: ESFD207-SNR

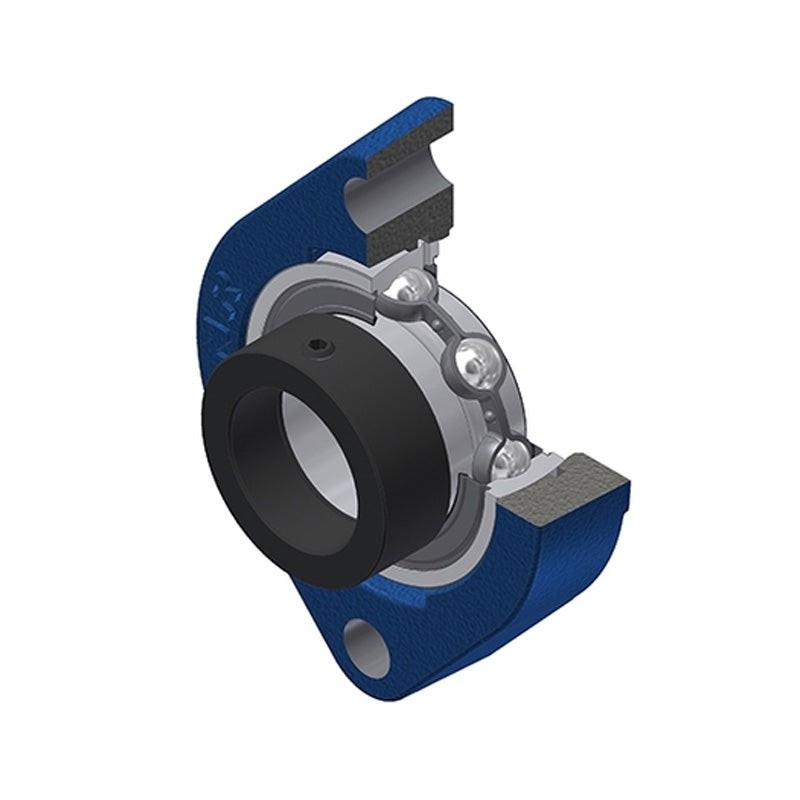

SNR ESFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 4,689.33
Regular price
Sale price
Rs. 4,689.33
Taxes included.
In stock
Price Break
10+
Rs. 4,173.50
19+
Rs. 3,939.04
29+
Rs. 3,892.14
39+
Rs. 3,845.25
49+
Rs. 3,798.36
74+
Rs. 3,751.46
99+
Rs. 3,517.00
199+
Rs. 3,470.10
249+
Rs. 3,423.21
499+
Rs. 3,376.32
999+
Rs. 3,282.53
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESFD
- Bolt Hole Centres:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 22mm |
| A2 | 41.8mm |
| B | 25.4mm |
| e | 12.4mm |
| H | 126mm |
| J | 100mm |
| L | 94mm |
| N | 11mm |
| S | 9.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1 kg |
