SKU: ESFD202-SNR

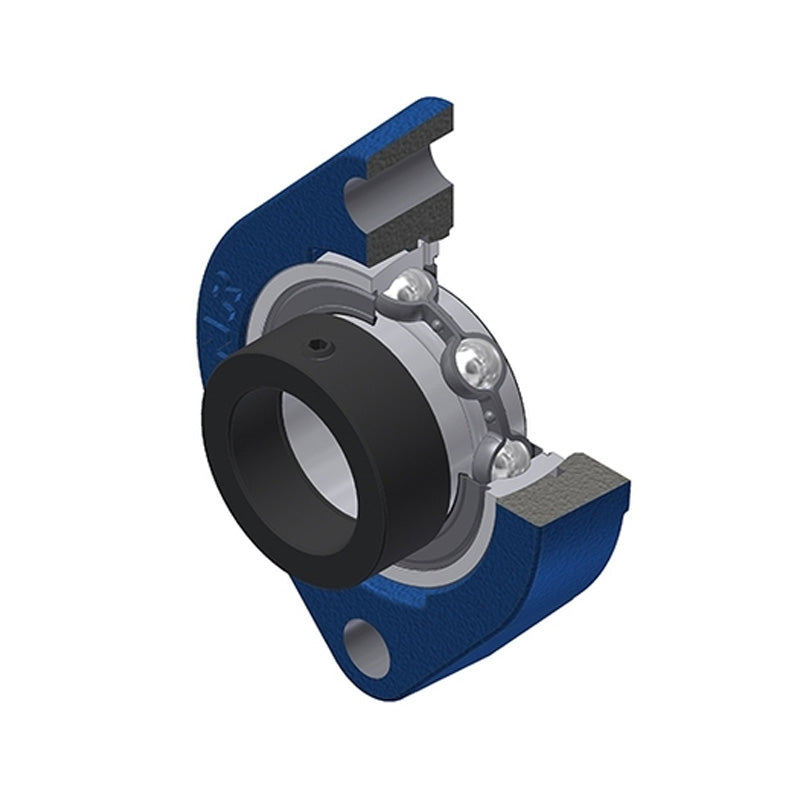

SNR ESFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 2,879.14
Regular price
Sale price
Rs. 2,879.14
Taxes included.
In stock
Price Break
10+
Rs. 2,562.43
19+
Rs. 2,418.48
29+
Rs. 2,389.69
39+
Rs. 2,360.89
49+
Rs. 2,332.10
74+
Rs. 2,303.31
99+
Rs. 2,159.36
199+
Rs. 2,130.56
249+
Rs. 2,101.77
499+
Rs. 2,072.98
999+
Rs. 2,015.40
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- ESFD
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 15mm |
| A2 | 30.5mm |
| B | 19.1mm |
| e | 8.4mm |
| H | 81mm |
| J | 63.5mm |
| L | 58.7mm |
| N | 6.5mm |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.33 kg |
