SKU: ESFCE204-SNR

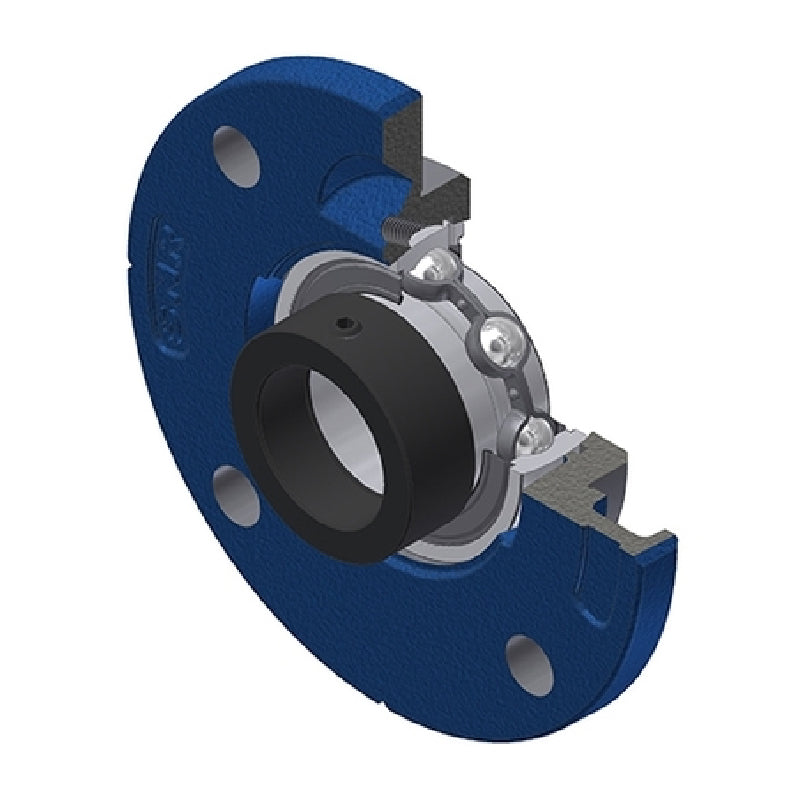

SNR ESFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 3,016.12
Regular price
Sale price
Rs. 3,016.12
Taxes included.
In stock
Price Break
10+
Rs. 2,684.35
19+
Rs. 2,533.54
29+
Rs. 2,503.38
39+
Rs. 2,473.22
49+
Rs. 2,443.06
74+
Rs. 2,412.90
99+
Rs. 2,262.09
199+
Rs. 2,231.93
249+
Rs. 2,201.77
499+
Rs. 2,171.61
999+
Rs. 2,111.28
Description
Description
ESFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESFCE
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 18mm |
| A1 | 8mm |
| A2 | 21.4mm |
| A3 | 2mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 32.4mm |
| e | -2mm |
| H3 | 62mm |
| J | 78mm |
| L | 100mm |
| N | 9mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.52 kg |
