SKU: ESFC210N-SNR

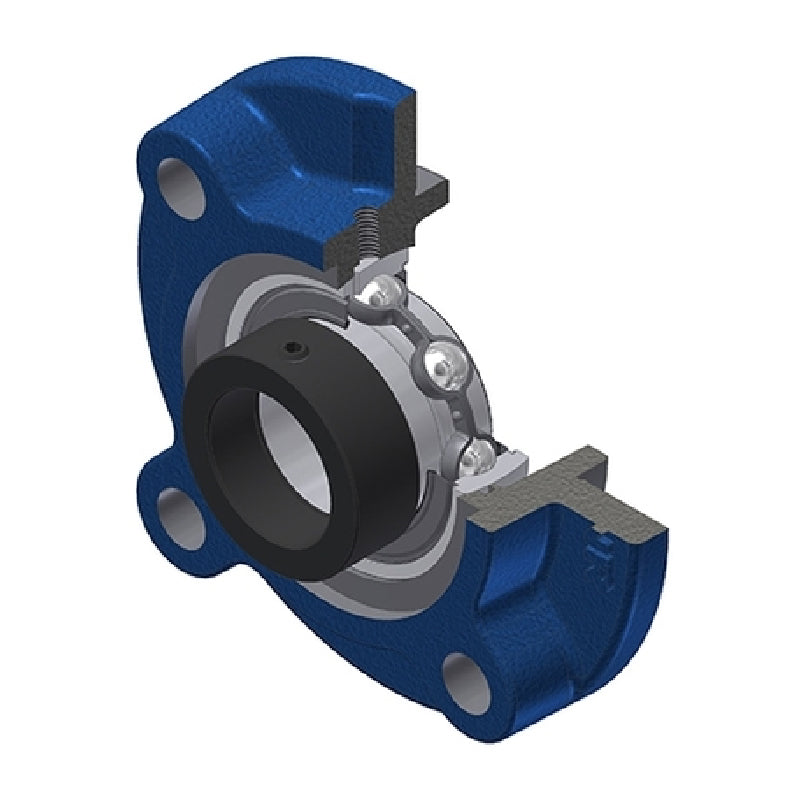

SNR ESFC210N Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFC210N Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 7,692.65
Regular price
Sale price
Rs. 7,692.65
Taxes included.
In stock
Price Break
10+
Rs. 6,846.46
19+
Rs. 6,461.83
29+
Rs. 6,384.90
39+
Rs. 6,307.97
49+
Rs. 6,231.05
74+
Rs. 6,154.12
99+
Rs. 5,769.49
199+
Rs. 5,692.56
249+
Rs. 5,615.63
499+
Rs. 5,538.71
999+
Rs. 5,384.86
Description
Description
ESFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESFC
- Pitch Circle Diameter:
- 138mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 14mm |
| A2 | 42.7mm |
| A4 | 28mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 67.2mm |
| e | 10mm |
| H3 | 110mm |
| J | 138mm |
| L | 165mm |
| N | 16mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.79 kg |
