SKU: ESFC209-SNR

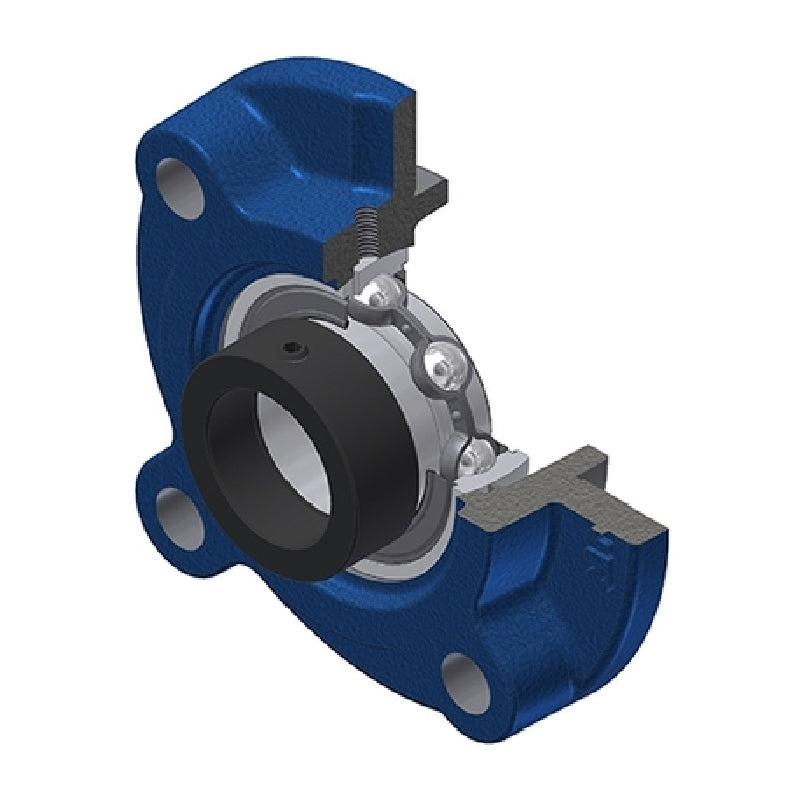

SNR ESFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 6,663.38
Regular price
Sale price
Rs. 6,663.38
Taxes included.
In stock
Price Break
10+
Rs. 5,930.41
19+
Rs. 5,597.24
29+
Rs. 5,530.61
39+
Rs. 5,463.97
49+
Rs. 5,397.34
74+
Rs. 5,330.70
99+
Rs. 4,997.54
199+
Rs. 4,930.90
249+
Rs. 4,864.27
499+
Rs. 4,797.63
999+
Rs. 4,664.37
Description
Description
ESFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESFC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 10mm |
| A2 | 42.7mm |
| A4 | 26mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 62mm |
| e | 10mm |
| H3 | 105mm |
| J | 132mm |
| L | 160mm |
| N | 16mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.44 kg |
