SKU: ESFAE207-SNR

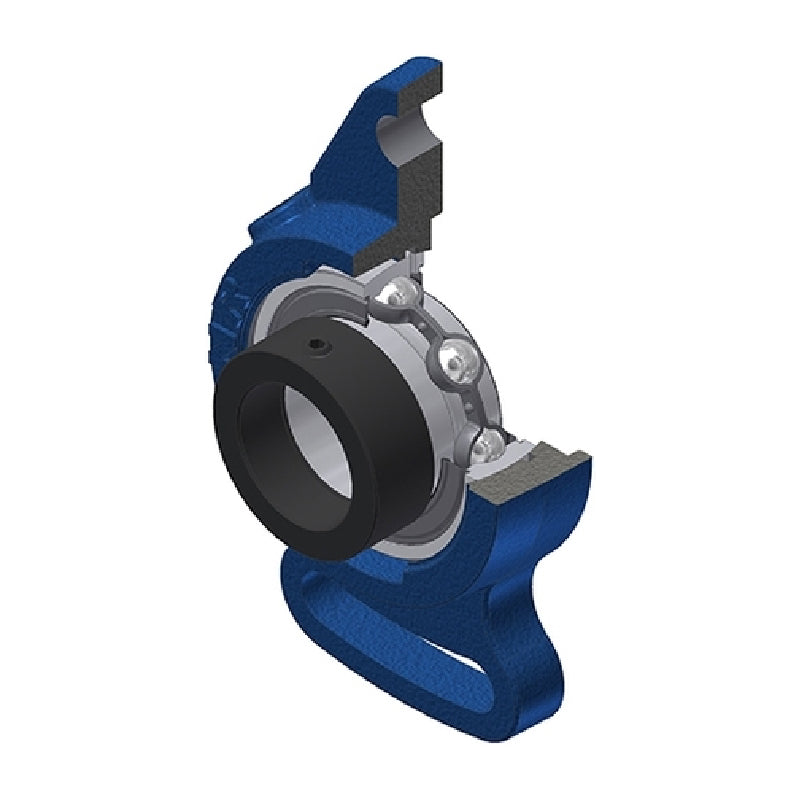

SNR ESFAE207 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
SNR ESFAE207 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
Regular price
Rs. 3,908.41
Regular price
Sale price
Rs. 3,908.41
Taxes included.
In stock
Price Break
10+
Rs. 3,478.48
19+
Rs. 3,283.06
29+
Rs. 3,243.98
39+
Rs. 3,204.90
49+
Rs. 3,165.81
74+
Rs. 3,126.73
99+
Rs. 2,931.31
199+
Rs. 2,892.22
249+
Rs. 2,853.14
499+
Rs. 2,814.06
999+
Rs. 2,735.89
Description
Description
ESFAE200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESFAE
- Bolt Hole Centres:
- 128mm
Technical
Technical

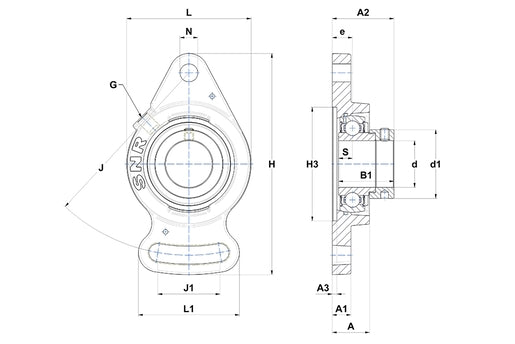

| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 26.5mm |
| A1 | 12.5mm |
| A2 | 44.4mm |
| A3 | 4.5mm |
| B | 25.4mm |
| B1 | 38.9mm |
| d1 | 51.1mm |
| e | 15mm |
| H | 155mm |
| H3 | 82.5mm |
| J | 128mm |
| J1 | 45mm |
| L | 90mm |
| L1 | 75mm |
| N | 14mm |
| S | 9.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.1 kg |
