SKU: ESF208-SNR

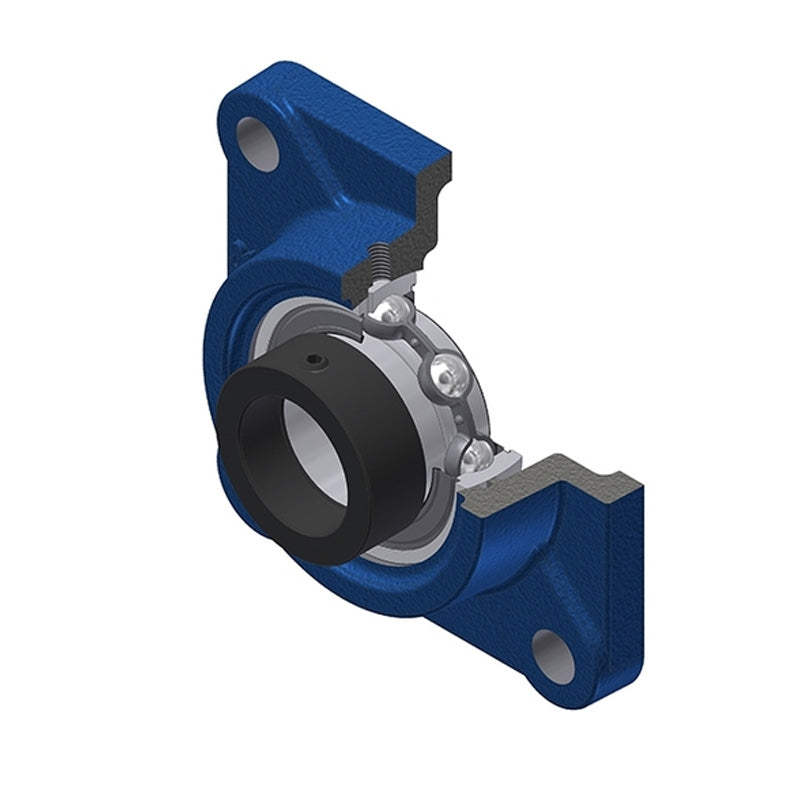

SNR ESF208 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 40mm Bore - Allow 2-3 Days
SNR ESF208 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 40mm Bore - Allow 2-3 Days
Regular price
Rs. 4,689.33
Regular price
Sale price
Rs. 4,689.33
Taxes included.
In stock
Price Break
10+
Rs. 4,173.50
19+
Rs. 3,939.04
29+
Rs. 3,892.14
39+
Rs. 3,845.25
49+
Rs. 3,798.36
74+
Rs. 3,751.46
99+
Rs. 3,517.00
199+
Rs. 3,470.10
249+
Rs. 3,423.21
499+
Rs. 3,376.32
999+
Rs. 3,282.53
Description
Description
ESF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 15mm |
| A2 | 53.7mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 58mm |
| e | 21mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.9 kg |
