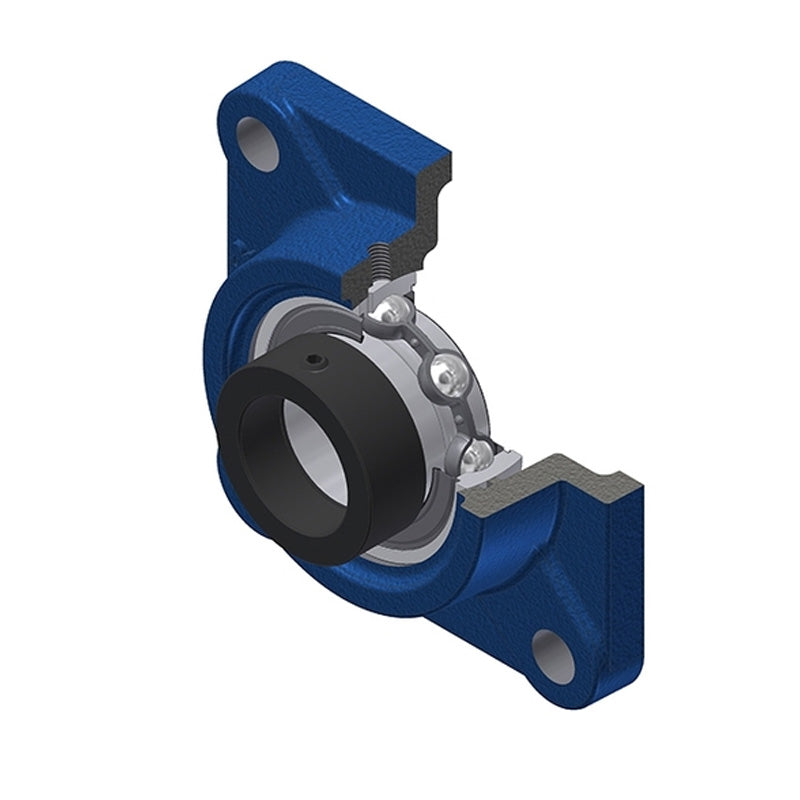

SNR ESF206-19 Imperial Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 1-3/16 inch Bore
SNR ESF206-19 Imperial Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 1-3/16 inch Bore
Regular price
Rs. 3,839.28
Regular price
Sale price
Rs. 3,839.28
Taxes included.
In stock
Price Break
10+
Rs. 3,416.96
19+
Rs. 3,225.00
29+
Rs. 3,186.60
39+
Rs. 3,148.21
49+
Rs. 3,109.82
74+
Rs. 3,071.42
99+
Rs. 2,879.46
199+
Rs. 2,841.07
249+
Rs. 2,802.67
499+
Rs. 2,764.28
999+
Rs. 2,687.50
Description
Description
ESF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- ESF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-3/16 inch |
| A | 31mm |
| A1 | 13mm |
| A2 | 44.7mm |
| B | 23.8mm |
| B1 | 35.7mm |
| d1 | 44.1mm |
| e | 18mm |
| J | 83mm |
| L | 108mm |
| N | 12mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.1 kg |
