SKU: ESEHE209-SNR
SNR ESEHE209 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR ESEHE209 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
Rs. 5,923.43
Regular price
Sale price
Rs. 5,923.43
Taxes included.
In stock
Price Break
10+
Rs. 5,271.85
19+
Rs. 4,975.68
29+
Rs. 4,916.45
39+
Rs. 4,857.21
49+
Rs. 4,797.98
74+
Rs. 4,738.74
99+
Rs. 4,442.57
199+
Rs. 4,383.34
249+
Rs. 4,324.10
499+
Rs. 4,264.87
999+
Rs. 4,146.40
Description
Description

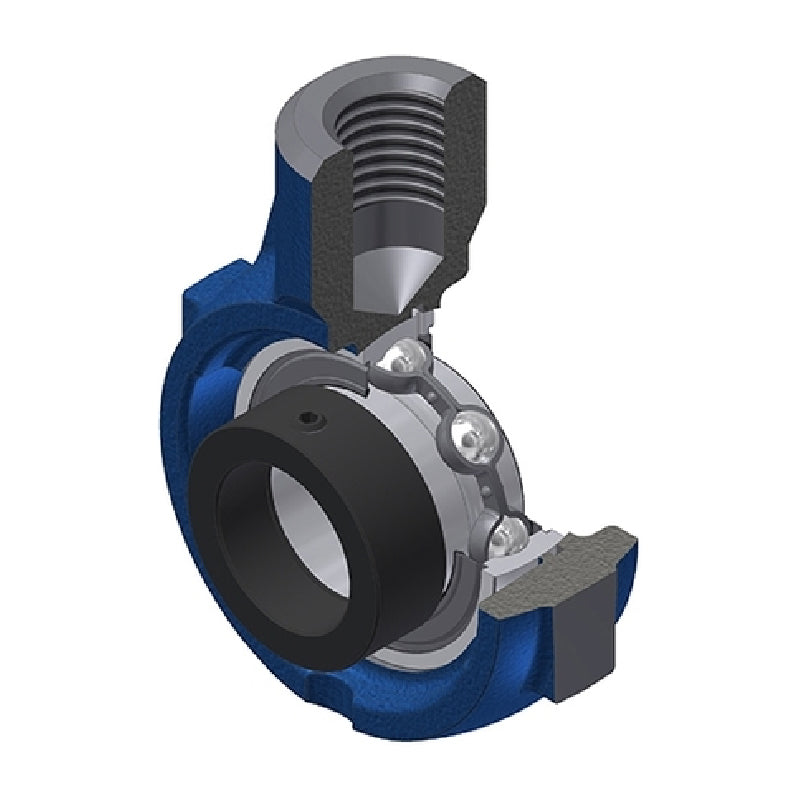

ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 40mm |
| A2 | 40mm |
| B1 | 43.7mm |
| d1 | 62mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 45mm |
| S | 11mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.89 kg |
