SKU: ES211-35G2-SNR

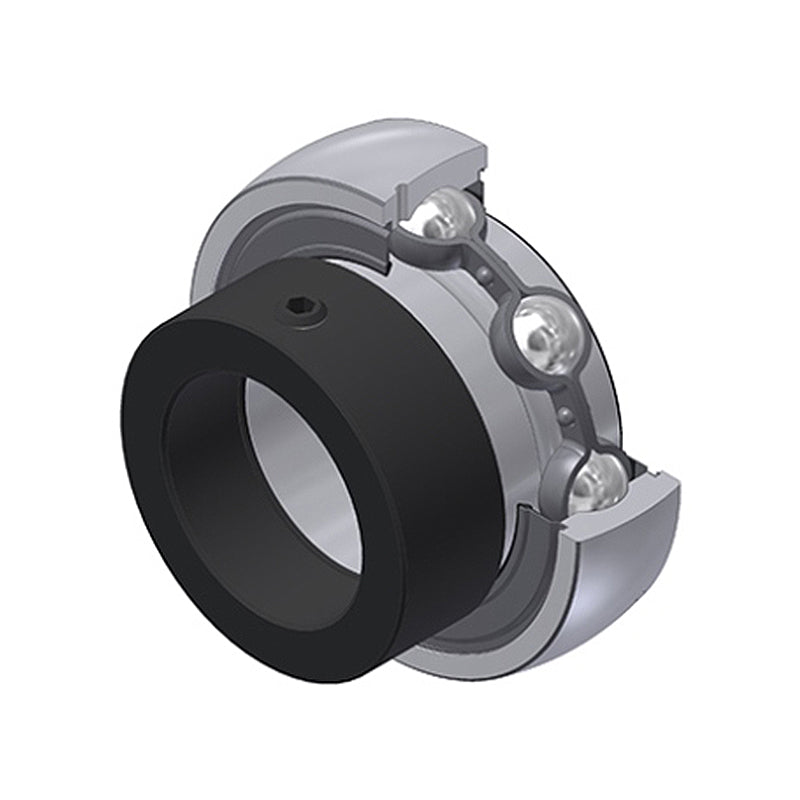

SNR ES211-35G2 Imperial Flatback Spherical Outer Bearing Insert 2-3/16 inch Bore 100mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
SNR ES211-35G2 Imperial Flatback Spherical Outer Bearing Insert 2-3/16 inch Bore 100mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
Regular price
Rs. 5,098.65
ex VAT
Regular price
Sale price
Rs. 5,098.65
ex VAT
Equivalent to: ES211-35
In stock
Price Break
5+
Rs. 5,047.66
10+
Rs. 4,843.72
20+
Rs. 4,741.74
50+
Rs. 4,588.79
100+
Rs. 4,486.81
500+
Rs. 4,231.88
1000+
Rs. 3,569.06
Couldn't load pickup availability
Description
Description
SNR ES Flatback Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is a standard version designed for various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It includes a zinc-coated sheet steel retainer with a vulcanized NBR seal, with the axially preloaded seal lip positioned behind a protective edge. Suitable for normal environmental conditions, this bearing insert supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered
Equivalent: ES211-35
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 3/8-24UNF
- Inside Diameter:
- 55.563mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 100mm
- Width:
- 48.4mm
- Style:
- ES
- Type:
- Spherical Outer
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| d | 55.563mm |
| D | 100mm |
| C | 24mm |
| B | 32.5mm |
| B1 | 48.4mm |
| B2 | 20.7mm |
| d1 | 74.5mm |
| S | 12mm |
| m | 8mm |
| C1 | 7.2mm |
| r min | 1.1mm |
| G | 3/8-24UNF |
| Wrench Size | 3/16 inch |
| Set screw torque | 16.8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 43.6kN |
| Static load rating C0 | 29.2kN |
| Weight | 0.8kg |
