SKU: EGLM-08

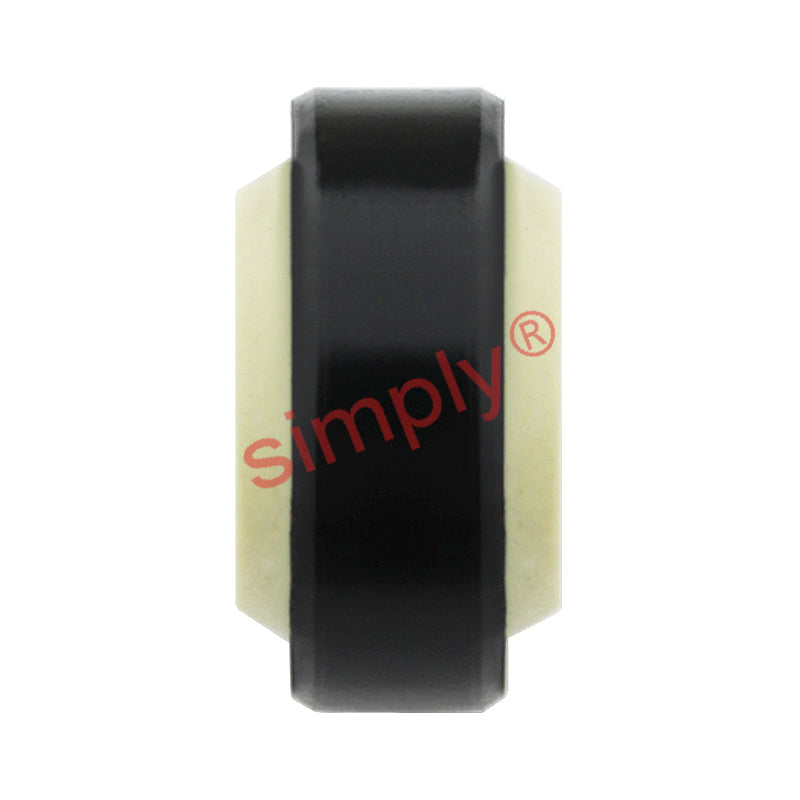

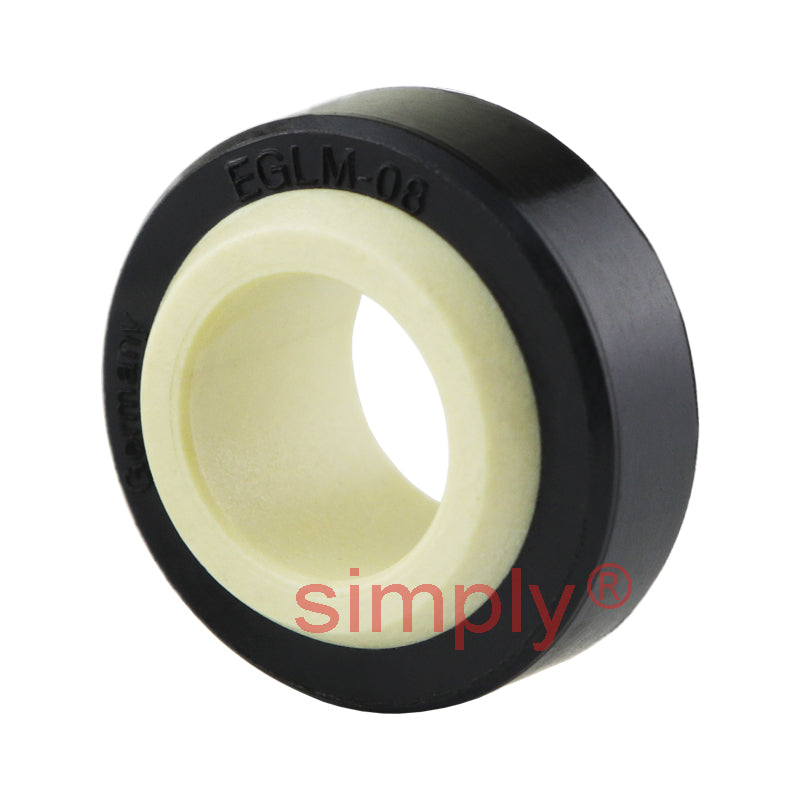

Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Regular price
Rs. 1,143.21
Regular price
Sale price
Rs. 1,143.21
Taxes included.
In stock
Price Break
10+
Rs. 1,017.46
19+
Rs. 960.30
29+
Rs. 948.86
39+
Rs. 937.43
49+
Rs. 926.00
74+
Rs. 914.57
99+
Rs. 857.41
199+
Rs. 845.98
249+
Rs. 834.54
499+
Rs. 823.11
999+
Rs. 800.25
Description
Description
EGLM Spherical Plain Bearings: These bearings are commonly used in the food industry, automotive industry, railway technology or plant construction. These bearings are popular due to the following reasons; high axial and radial loads, easy to install, great chemical resistance, cost-effective and the ability to adjust misalignments.
Benefits: Compensation of misalignment and edge loads, corrosion-resistant, suitable for rotating, oscillating and axial movements.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 8mm
Technical
Technical

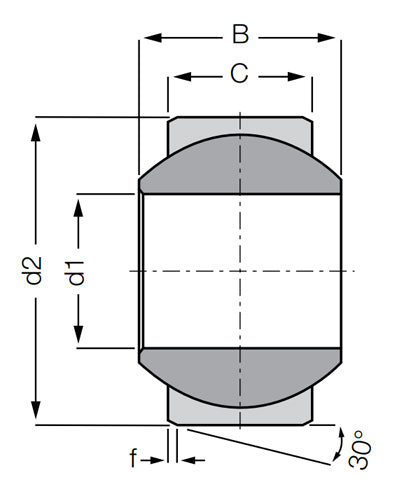

| d1 | 8mm |
|---|---|
| d2 | 16mm |
| B | 8mm |
| C | 5mm |
| f | 0.5mm |
| Max Static Compressive Strength (Radial) | 303 lbs |
| Max Static Compressive Strength (Axial) | 39 lbs |
| Max Torque Through Ball | 5.2 ft lbs |
| Max Pivot Angle | 24 deg |
| Weight | 0.001 kg |
