SKU: E70-KRR-INA

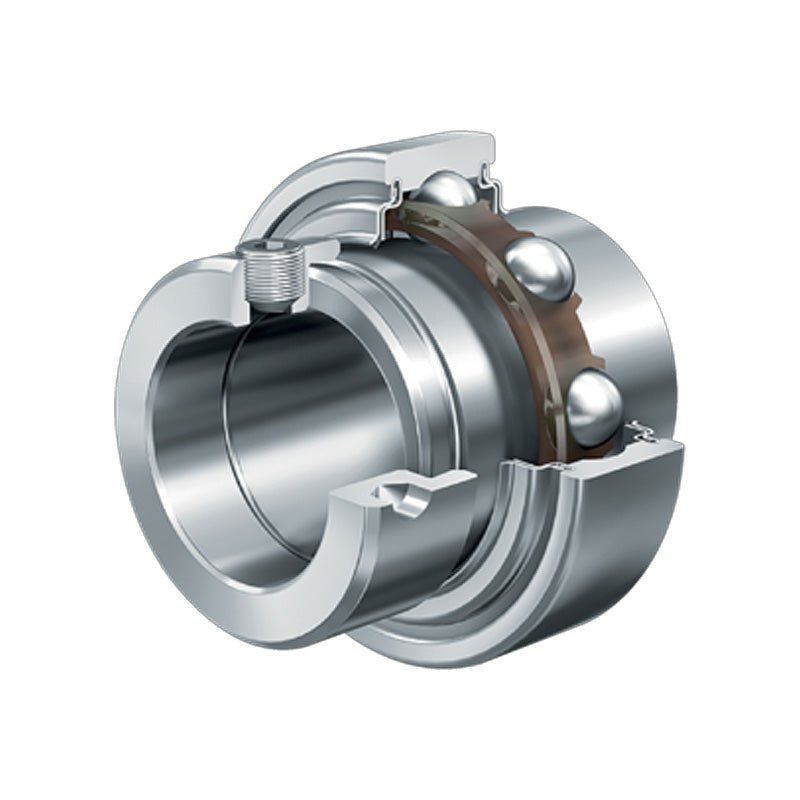

INA E70XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 70x125x66mm
INA E70XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 70x125x66mm
Regular price
Rs. 20,472.76
Regular price
Sale price
Rs. 20,472.76
Taxes included.
In stock
Price Break
10+
Rs. 18,220.76
19+
Rs. 17,197.12
29+
Rs. 16,992.39
39+
Rs. 16,787.66
49+
Rs. 16,582.94
74+
Rs. 16,378.21
99+
Rs. 15,354.57
199+
Rs. 15,149.84
249+
Rs. 14,945.11
499+
Rs. 14,740.39
999+
Rs. 14,330.93
Description
Description
|
INA E..-KRR Series Inserts: Bearing insert with parallel outer race, R seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 66mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B1 | 66mm |
| B | 48.5mm |
| C | 28mm |
| C2 | 32mm |
| D1 | 109mm |
| d1 | 85.2mm |
| d3 max | 96mm |
| S | 21.5mm |
| W | 6mm |
| Dynamic load Cr | 62000 N |
| Static load C0r | 44000 N |
| Weight | 2.45 kg |
