SKU: E50-KRR-INA

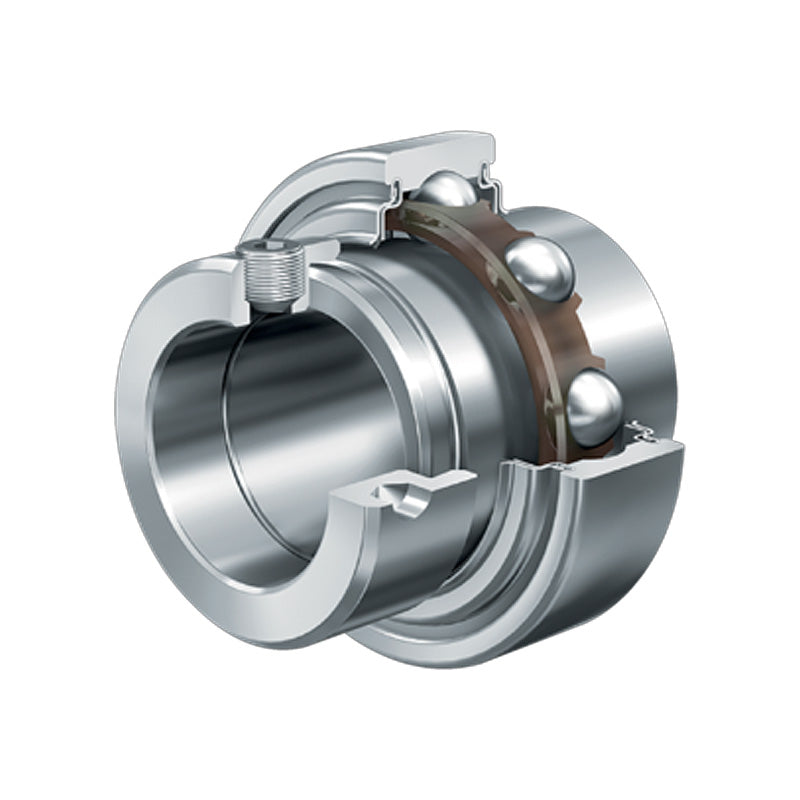

INA E50XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 50x90x62.8mm
INA E50XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 50x90x62.8mm
Regular price
Rs. 7,710.57
Regular price
Sale price
Rs. 7,710.57
Taxes included.
In stock
Price Break
10+
Rs. 6,862.41
19+
Rs. 6,476.88
29+
Rs. 6,399.77
39+
Rs. 6,322.67
49+
Rs. 6,245.56
74+
Rs. 6,168.46
99+
Rs. 5,782.93
199+
Rs. 5,705.82
249+
Rs. 5,628.72
499+
Rs. 5,551.61
999+
Rs. 5,397.40
Description
Description
|
INA E..-KRR Series Inserts: Bearing insert with parallel outer race, R seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 62.8mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B1 | 62.8mm |
| B | 49.2mm |
| C | 22mm |
| C2 | 26.4mm |
| D1 | 77.3mm |
| d1 | 62.8mm |
| d3 max | 69mm |
| S | 24.6mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 1 kg |
