SKU: E40-KRR-INA
INA E40XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 40x80x56.5mm
INA E40XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 40x80x56.5mm
Regular price
Rs. 6,032.24
Regular price
Sale price
Rs. 6,032.24
Taxes included.
In stock
Price Break
10+
Rs. 5,368.69
19+
Rs. 5,067.08
29+
Rs. 5,006.76
39+
Rs. 4,946.44
49+
Rs. 4,886.11
74+
Rs. 4,825.79
99+
Rs. 4,524.18
199+
Rs. 4,463.86
249+
Rs. 4,403.54
499+
Rs. 4,343.21
999+
Rs. 4,222.57
Description
Description
|

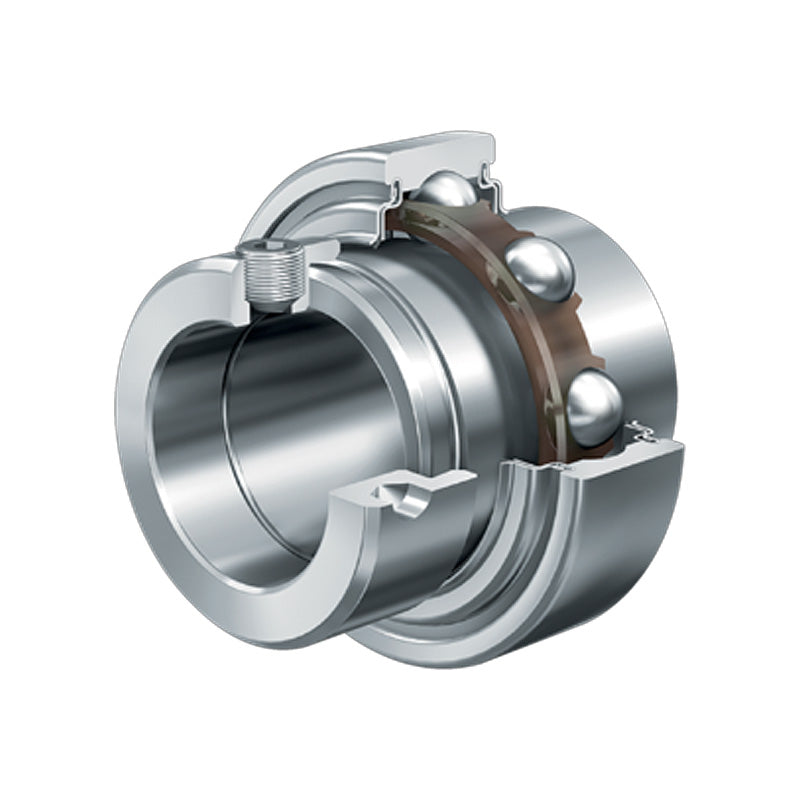

INA E..-KRR Series Inserts: Bearing insert with parallel outer race, R seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 56.5mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 21mm |
| C2 | 23.5mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| d3 max | 58mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.75 kg |
