SKU: E35-KLL-INA

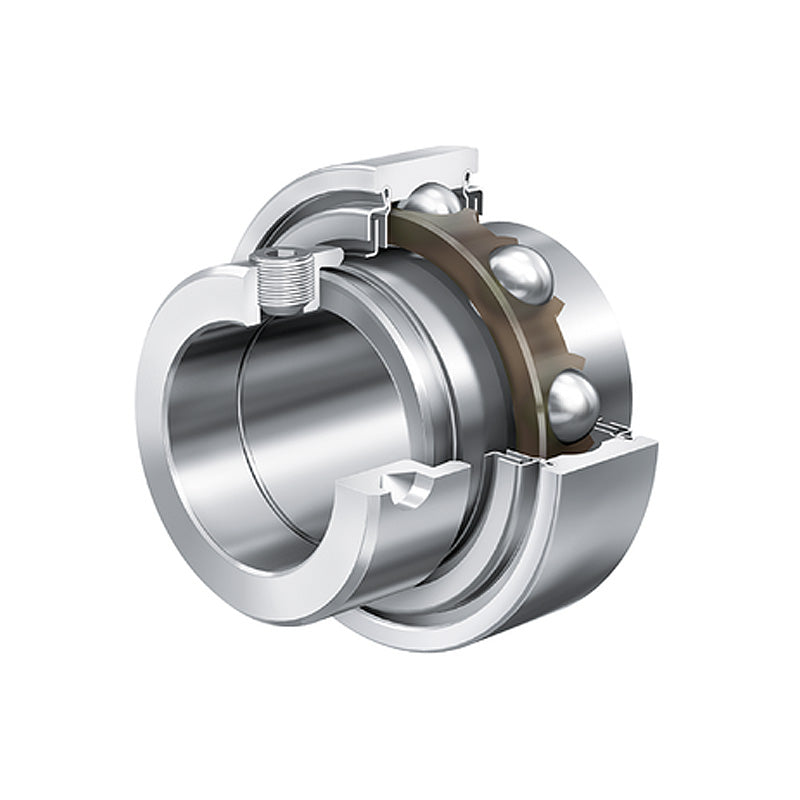

INA E35XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 35x72x51.3mm
INA E35XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 35x72x51.3mm
Regular price
Rs. 6,653.14
Regular price
Sale price
Rs. 6,653.14
Taxes included.
In stock
Price Break
10+
Rs. 5,921.29
19+
Rs. 5,588.64
29+
Rs. 5,522.11
39+
Rs. 5,455.57
49+
Rs. 5,389.04
74+
Rs. 5,322.51
99+
Rs. 4,989.86
199+
Rs. 4,923.32
249+
Rs. 4,856.79
499+
Rs. 4,790.26
999+
Rs. 4,657.20
Description
Description
|
INA E..-KLL Series Inserts: Bearing insert with parallel outer race, L seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 51.3mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 51.3mm |
| B | 37.7mm |
| C | 19mm |
| C2 | 25.4mm |
| D1 | 60.3mm |
| d1 | 46.8mm |
| d3 max | 51mm |
| S | 18.8mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.56 kg |
