SKU: E25-KRR-B-INA

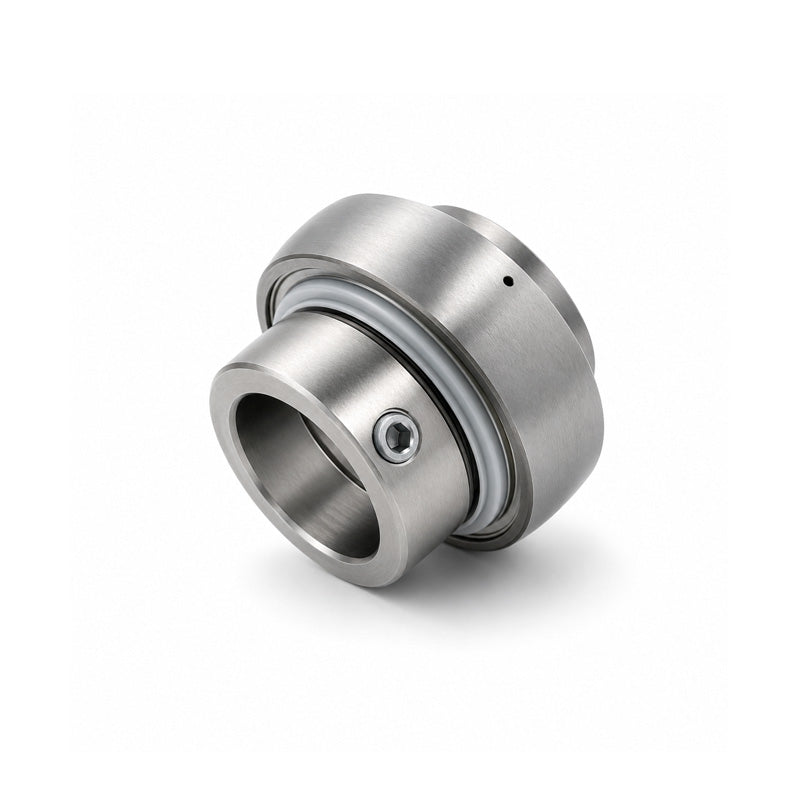

INA E25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 25x52x44.5mm
INA E25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 25x52x44.5mm
Regular price
Rs. 3,220.95
Regular price
Sale price
Rs. 3,220.95
Taxes included.
In stock
Price Break
10+
Rs. 2,866.65
19+
Rs. 2,705.60
29+
Rs. 2,673.39
39+
Rs. 2,641.18
49+
Rs. 2,608.97
74+
Rs. 2,576.76
99+
Rs. 2,415.71
199+
Rs. 2,383.50
249+
Rs. 2,351.29
499+
Rs. 2,319.08
999+
Rs. 2,254.67
Description
Description
|
INA E..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 44.5mm
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 44.5mm |
| B | 34.9mm |
| C | 15mm |
| C2 | 16.7mm |
| D1 | 42.5mm |
| d1 | 33.8mm |
| d3 max | 37.5mm |
| S | 17.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.25 kg |
