SKU: E20-KLL-INA

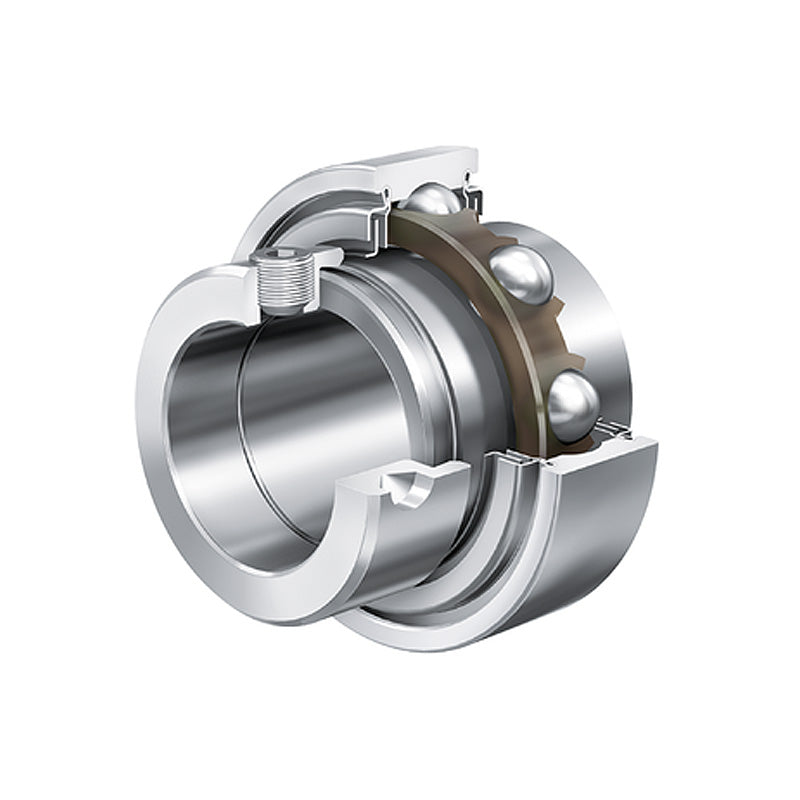

INA E20XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
INA E20XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
Regular price
Rs. 4,327.03
Regular price
Sale price
Rs. 4,327.03
Taxes included.
In stock
Price Break
10+
Rs. 3,851.06
19+
Rs. 3,634.71
29+
Rs. 3,591.43
39+
Rs. 3,548.16
49+
Rs. 3,504.89
74+
Rs. 3,461.62
99+
Rs. 3,245.27
199+
Rs. 3,202.00
249+
Rs. 3,158.73
499+
Rs. 3,115.46
999+
Rs. 3,028.92
Description
Description
|
INA E..-KLL Series Inserts: Bearing insert with parallel outer race, L seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 43.7mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B1 | 43.7mm |
| B | 34.1mm |
| C | 14mm |
| C2 | 16.6mm |
| D1 | 37.4mm |
| d1 | 27.6mm |
| d3 max | 33mm |
| S | 17.1mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.2 kg |
