SKU: DSIL06-T/K-DURB

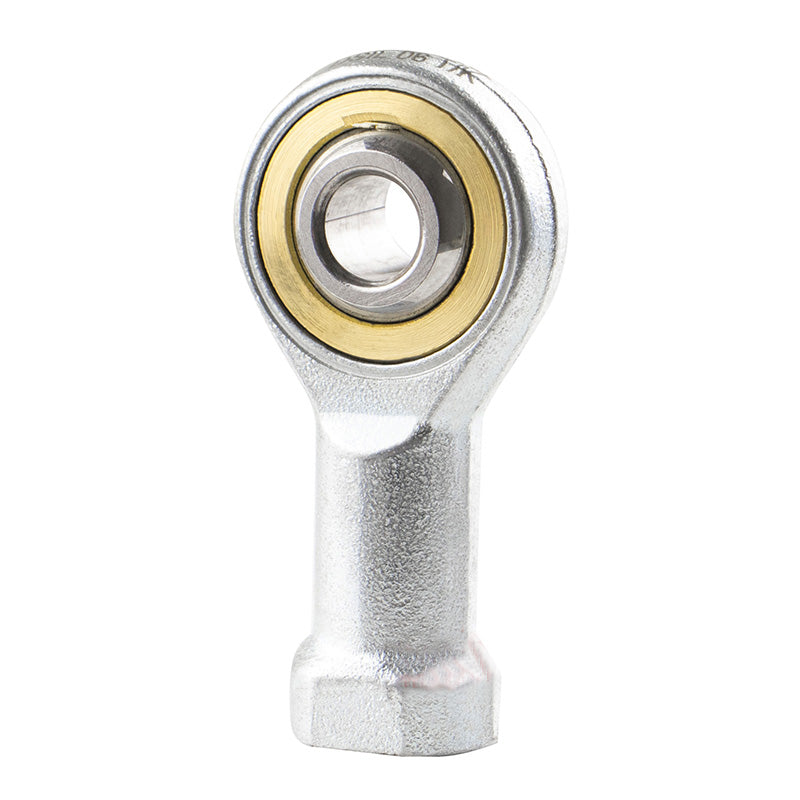

Durbal DSIL06-T/K Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread
Durbal DSIL06-T/K Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread
Regular price
Rs. 2,438.86
ex VAT
Regular price
Sale price
Rs. 2,438.86
ex VAT
In stock
Price Break
10+
Rs. 2,170.59
19+
Rs. 2,048.64
29+
Rs. 2,024.25
39+
Rs. 1,999.87
49+
Rs. 1,975.48
74+
Rs. 1,951.09
99+
Rs. 1,829.15
199+
Rs. 1,804.76
249+
Rs. 1,780.37
499+
Rs. 1,755.98
999+
Rs. 1,707.20
Couldn't load pickup availability
Description
Description
DURBAL Standard Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, forged, heat-treated steel housing with a bearing brass outer ring lined with bronze - PTFE composite and a steel joint ball bearing. Suitable for use in situations of low speeds and dynamic loads. Made of forged and heat-treated steel, which protects against corrosion by galvanisation. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 6mm
- Material:
- PTFE Lined
Technical
Technical
| Thread Direction | Left |
|---|---|
| d | 6mm |
| d1 | 8.9mm |
| d2 | 20mm |
| d3 | 10mm |
| d4 | 13mm |
| dk | 12.7mm |
| G (Thread) | M6mm |
| B | 9mm |
| C1 | 6.75mm |
| l3 | 12mm |
| l4 | 40mm |
| l5 | 5mm |
| l7 | 11mm |
| W | 11mm |
| h1 | 30mm |
| tilt angle α | 13 deg |
| weight | 0.022kg |
| basic load rating dyn C | 3.7 kN |
| basic load rating stat Co | 6.2 kN |
| radial clearance CN | 0-32 µm |
