SKU: DSA08-T/K-DURB

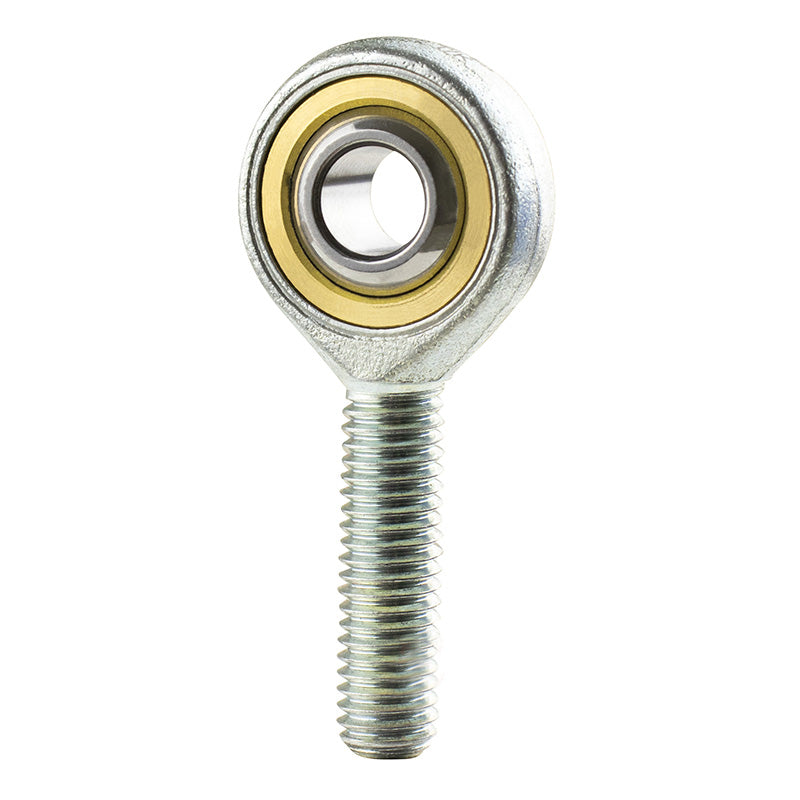

Durbal DSA08-T/K Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M8 Thread
Durbal DSA08-T/K Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M8 Thread
Regular price
Rs. 2,270.14
ex VAT
Regular price
Sale price
Rs. 2,270.14
ex VAT
Equivalent to: GAKR8PW SAKB8F
In stock
Price Break
10+
Rs. 2,020.42
19+
Rs. 1,906.92
29+
Rs. 1,884.22
39+
Rs. 1,861.51
49+
Rs. 1,838.81
74+
Rs. 1,816.11
99+
Rs. 1,702.61
199+
Rs. 1,679.90
249+
Rs. 1,657.20
499+
Rs. 1,634.50
999+
Rs. 1,589.10
Couldn't load pickup availability
Description
Description
DURBAL Standard Male Rod Ends with Pressed Spherical-Plain Bearing: Threaded male rod end consisting of a galvanised, forged, heat-treated steel housing with a bearing brass outer ring lined with bronze - PTFE composite and a steel joint ball bearing. Suitable for use in situations of low speeds and dynamic loads. Made of forged and heat-treated steel, which protects against corrosion by galvanisation. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Equivalent: GAKR8PW SAKB8F
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M8
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- PTFE Lined
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 8mm |
| d1 | 10.3mm |
| d2 | 24mm |
| dk | 15.88mm |
| G (Thread) | M8mm |
| B | 12mm |
| C1 | 9mm |
| l1 | 25mm |
| l2 | 54mm |
| l7 | 13mm |
| h | 42mm |
| tilt angle α | 14 deg |
| weight | 0.038kg |
| basic load rating dyn C | 6.1 kN |
| basic load rating stat Co | 10.3 kN |
| radial clearance CN | 0-32 µm |
