SKU: DNF240/9A-RHP

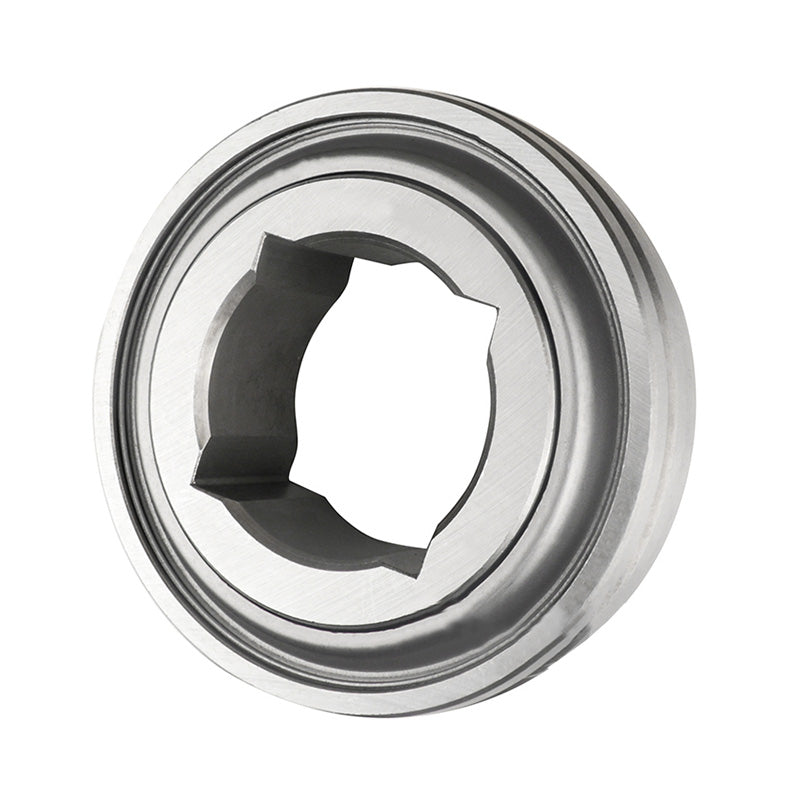

RHP DNF240/9A Spherical Outer Square 30mm Bore Bearing 80mm Outside Diameter
RHP DNF240/9A Spherical Outer Square 30mm Bore Bearing 80mm Outside Diameter
Regular price
Rs. 10,300.79
ex VAT
Regular price
Sale price
Rs. 10,300.79
ex VAT
In stock
Price Break
10+
Rs. 9,167.70
19+
Rs. 8,652.66
29+
Rs. 8,549.66
39+
Rs. 8,446.65
49+
Rs. 8,343.64
74+
Rs. 8,240.63
99+
Rs. 7,725.59
199+
Rs. 7,622.58
249+
Rs. 7,519.58
499+
Rs. 7,416.57
999+
Rs. 7,210.55
Couldn't load pickup availability
Description
Description
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
- A great working depth places the bearings directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage
- Shock load protection due to high grade ductile iron housing
- Exclusive patented sealing system eliminates the need for daily relubrication
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 80mm
- Style:
- DNF
Technical
Technical
| Bore | 30mm |
|---|---|
| d Nominal | 30.94mm |
| Tolerance Nominal to Minus | 0.2 |
| D Nominal | 80mm |
| Tolerance Nominal to Minus | 0.013 |
| B | 36.51mm |
| C | 21mm |
| C2 | -mm |
| r | -mm |
| Dynamic load Cr | 22400 N |
| Static load Cor | 17900 N |
| Rec max speed | 500 rpm |
| Weight | 0.61 kg |
