SKU: DL61/18-18X35X25

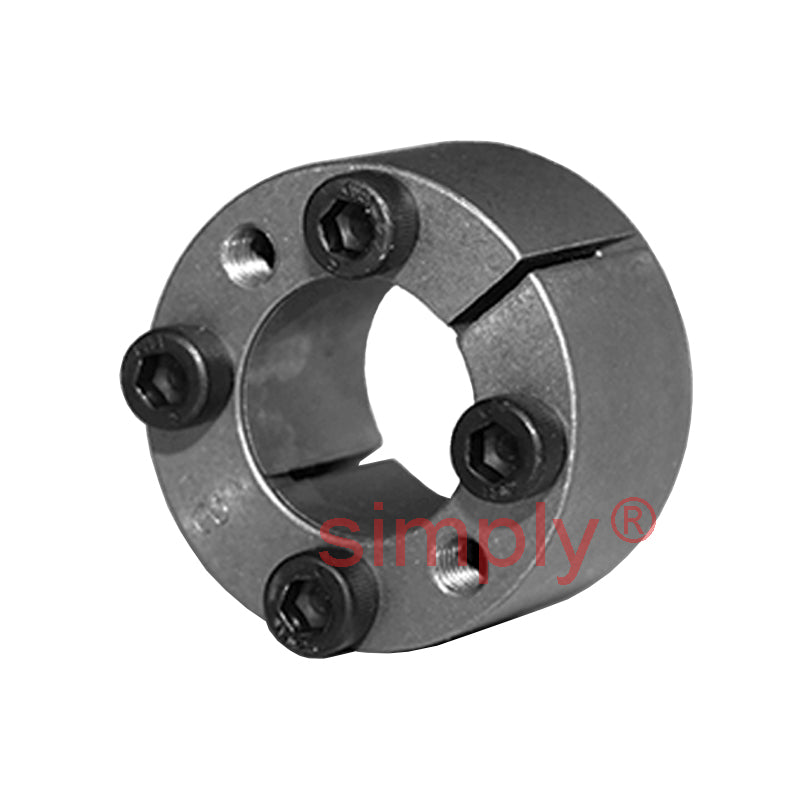

Major Brand DL61/18 Steel DRIVELOCK Bush 18x35x25mm - Allow 2-3 Days
Major Brand DL61/18 Steel DRIVELOCK Bush 18x35x25mm - Allow 2-3 Days
Regular price
Rs. 2,775.45
Regular price
Sale price
Rs. 2,775.45
Taxes included.
In stock
Price Break
10+
Rs. 2,470.15
19+
Rs. 2,331.38
29+
Rs. 2,303.62
39+
Rs. 2,275.87
49+
Rs. 2,248.11
74+
Rs. 2,220.36
99+
Rs. 2,081.59
199+
Rs. 2,053.83
249+
Rs. 2,026.08
499+
Rs. 1,998.32
999+
Rs. 1,942.82
Description
Description
DRIVELOCK 61 Bushes: These bushes are self-centering components designed to provide reliable and precise shaft-hub connections for medium torque applications, ranging from 5 to 1,900 Nm. Their self-centering feature ensures accurate alignment, reducing mechanical stress and vibration. They are available in bore sizes from 5 mm to 50 mm and can also be supplied in imperial sizes upon request. The DRIVELOCK 61 Bushes offer a versatile and efficient solution for a variety of machinery and equipment, ensuring smooth operation and extended component life.
Benefits: Self-centering precision, medium torque handling, versatility in bore sizes
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M4
- Inside Diameter:
- 18mm
- Outside Diameter:
- 35mm
- Width:
- 25mm
- Style:
- DL61

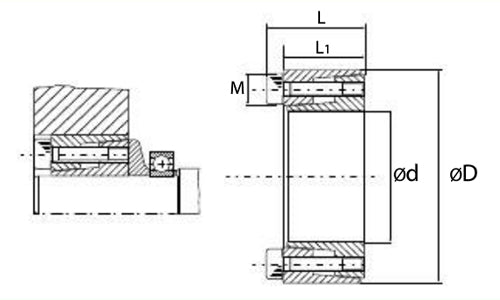

Technical
Technical
| Material | Steel |
|---|---|
| d (h8) | 18mm |
| D | 35mm |
| L1 | 21mm |
| L | 25mm |
| M (screws) | M4 |
| Ts | 4.9 Nm |
| T | 80 Nm |
| F | 8 kN |
| p | 60 N/mm2 |
| Shaft | h8 |
| Hub | H8 |
| Weight Kg | 0.09 kg |
