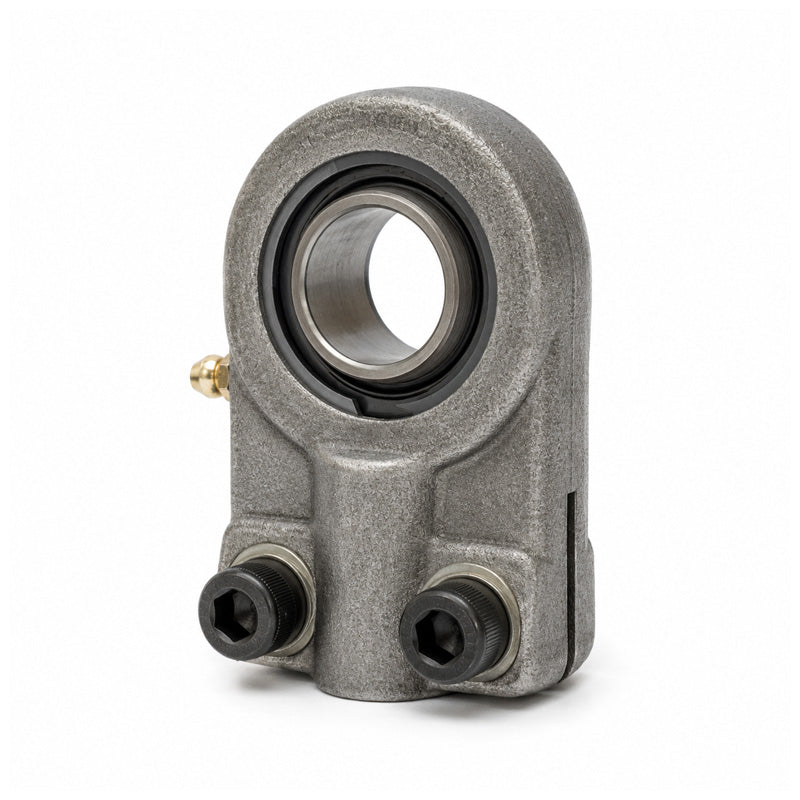

Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread
Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread
Regular price
Rs. 14,382.64
ex VAT
Regular price
Sale price
Rs. 14,382.64
ex VAT
Equivalent to: GIHNK40LO SIQG40ES
In stock
Price Break
10+
Rs. 12,800.55
19+
Rs. 12,081.42
29+
Rs. 11,937.59
39+
Rs. 11,793.76
49+
Rs. 11,649.94
74+
Rs. 11,506.11
99+
Rs. 10,786.98
199+
Rs. 10,643.15
249+
Rs. 10,499.33
499+
Rs. 10,355.50
999+
Rs. 10,067.85
Couldn't load pickup availability
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK40LO SIQG40ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M33x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 40mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 40mm |
| d1 | 46mm |
| d2 | 90mm |
| d4 | 47mm |
| d5 | 80mm |
| dk | 53mm |
| G (Thread) | M33x2mm |
| B | 40mm |
| C1 | 33mm |
| C2 | 26mm |
| l3 | 46mm |
| l4 | 146mm |
| l7 | 41mm |
| h1 | 97mm |
| tilt angle α | 4 deg |
| weight | 2.1kg |
| basic load rating dyn C | 80 kN |
| basic load rating stat Co | 163.2 kN |
| radial clearance CN | 8-120 µm |
