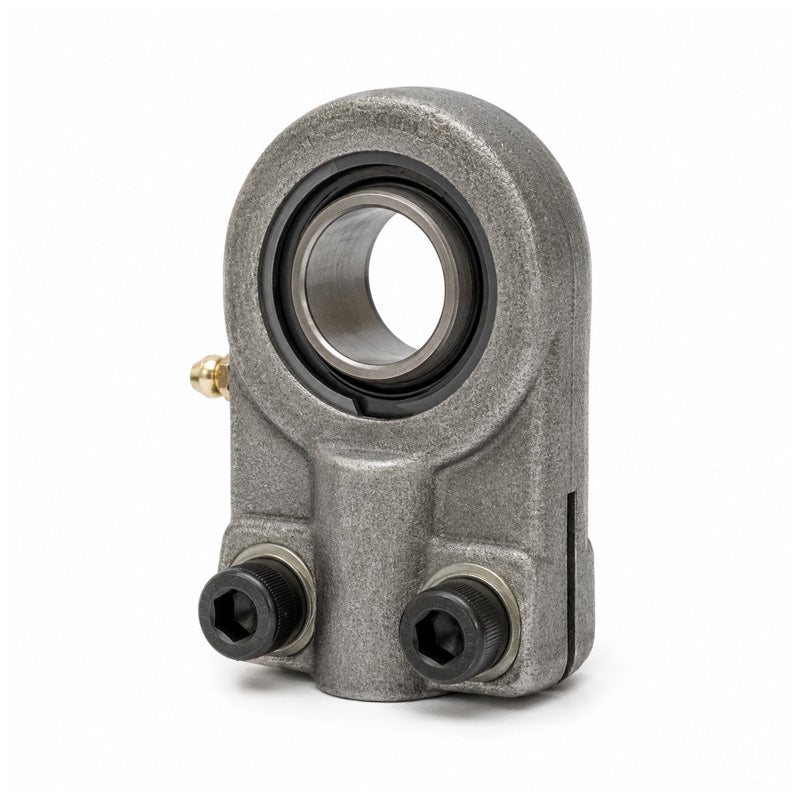

Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
Regular price
Rs. 71,370.87
ex VAT
Regular price
Sale price
Rs. 71,370.87
ex VAT
Equivalent to: GIHNK100LO SIQG100ES
In stock
Price Break
10+
Rs. 63,520.07
19+
Rs. 59,951.53
29+
Rs. 59,237.82
39+
Rs. 58,524.11
49+
Rs. 57,810.40
74+
Rs. 57,096.70
99+
Rs. 53,528.15
199+
Rs. 52,814.44
249+
Rs. 52,100.74
499+
Rs. 51,387.03
999+
Rs. 49,959.61
Couldn't load pickup availability
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK100LO SIQG100ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M80x3
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 100mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 100mm |
| d1 | 113mm |
| d2 | 210mm |
| d4 | 110mm |
| d5 | 178mm |
| dk | 150mm |
| G (Thread) | M80x3mm |
| B | 100mm |
| C1 | 84mm |
| C2 | 62mm |
| l3 | 96mm |
| l4 | 322mm |
| l7 | 98mm |
| h1 | 210mm |
| tilt angle α | 4 deg |
| weight | 28kg |
| basic load rating dyn C | 488 kN |
| basic load rating stat Co | 848 kN |
| radial clearance CN | 8-165 µm |
