SKU: DGF32LO-DURB

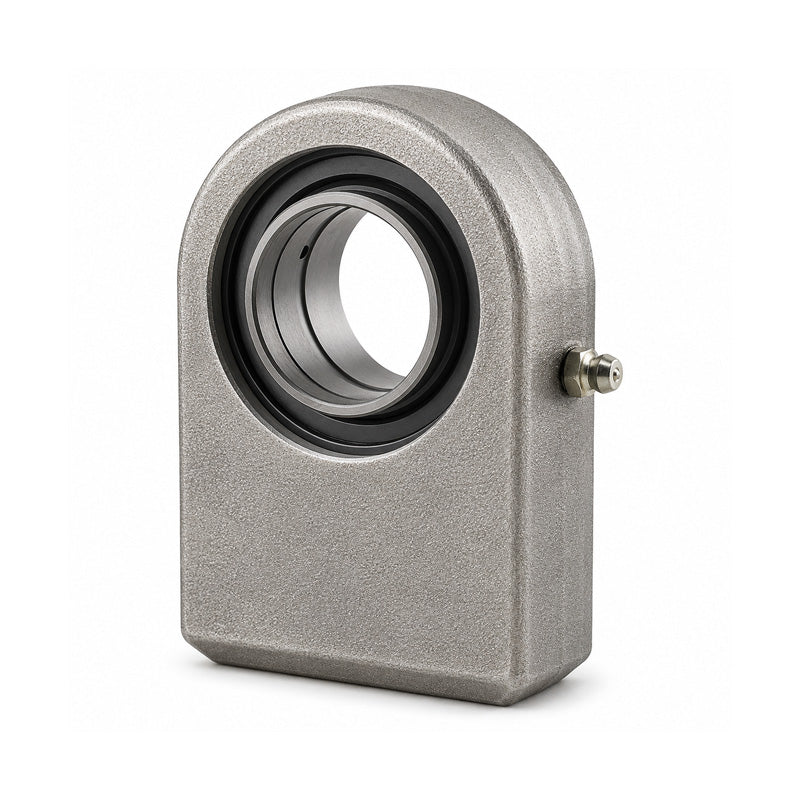

Durbal DGF32LO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
Durbal DGF32LO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
Regular price
Rs. 4,402.22
ex VAT
Regular price
Sale price
Rs. 4,402.22
ex VAT
Low stock
Price Break
10+
Rs. 3,917.98
19+
Rs. 3,697.86
29+
Rs. 3,653.84
39+
Rs. 3,609.82
49+
Rs. 3,565.80
74+
Rs. 3,521.78
99+
Rs. 3,301.67
199+
Rs. 3,257.64
249+
Rs. 3,213.62
499+
Rs. 3,169.60
999+
Rs. 3,081.55
Couldn't load pickup availability
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Square Welding End): Threaded female hydraulic rod end consisting of a forged, weldable steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for heavy static or changing loads, shock loads. Suitable for the fixing of piston rod ends and hydraulic cylinder bases. Rod ends can be greased subsequently by means of a conical grease nipple. Temperature range -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 32mm
Technical
Technical
| d | 32mm |
|---|---|
| d1 | 38mm |
| d2 | 70mm |
| dk | 44mm |
| B | 32mm |
| C1 | 27mm |
| l6 | 100mm |
| h2 | 65mm |
| tilt angle ? | 4 deg |
| weight | 1.12kg |
| basic load rating dyn C | 50 kN |
| basic load rating stat Co | 134.4 kN |
| radial clearance CN | 8-100 µm |
