SKU: DGEZ88ES-2RS-DURB
Durbal DGEZ88ES-2RS Maintenance Required Steel / Steel Imperial Spherical Plain Bearing with Seals 3-1/2x4x5-1/2 inch - Allow 2-3 Days
Durbal DGEZ88ES-2RS Maintenance Required Steel / Steel Imperial Spherical Plain Bearing with Seals 3-1/2x4x5-1/2 inch - Allow 2-3 Days
Regular price
Rs. 34,041.47
Regular price
Sale price
Rs. 34,041.47
Taxes included.
In stock
Price Break
5+
Rs. 33,701.06
10+
Rs. 32,339.40
20+
Rs. 31,658.57
50+
Rs. 30,637.32
100+
Rs. 29,956.49
500+
Rs. 28,254.42
1000+
Rs. 23,829.03
Description
Description

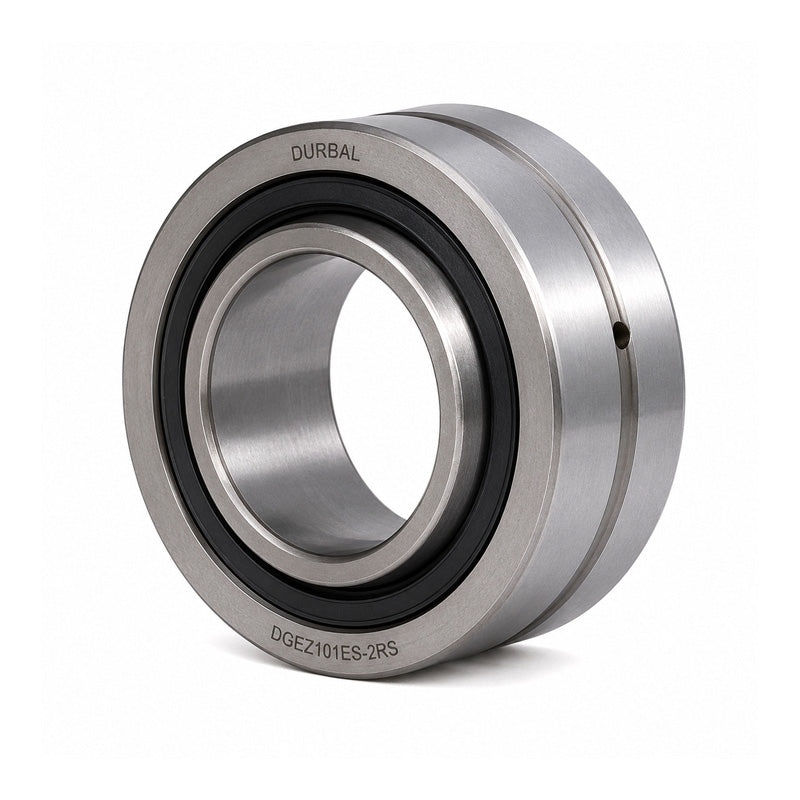

DURBAL Maintenance Required Spherical-Plain Bearing with Seals - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes and 2RS lip seals on both sides. (Outer ring has a split from size 15) For use with high and alternating loads.Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
Technical
Technical
| d | 88.9mm=3-1/2inch |
|---|---|
| d1 | 101.7mm |
| D | 139.7mm |
| dk | 128mm |
| B | 77.775mm |
| C | 66.675mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 4.79kg |
| basic load rating dyn C | 680 kN |
| basic load rating stat Co | 2040 kN |
| CN | 130-230 µm |
