SKU: DGEG20ES-2RS-DURB

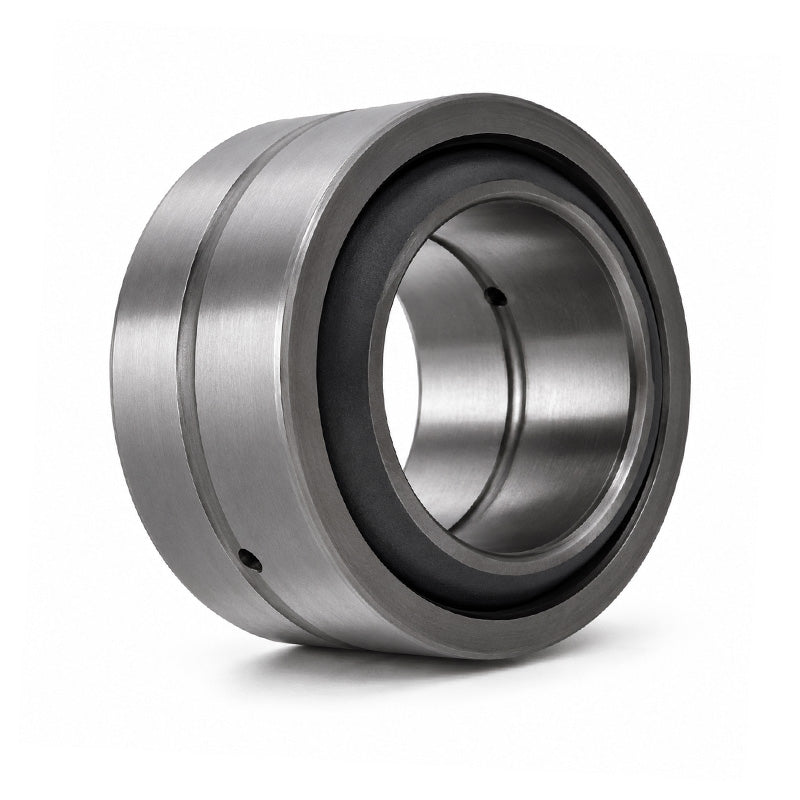

Durbal DGEG20ES-2RS Maintenance Required Steel / Steel Spherical Plain Bearing with Seals 20x42x25mm - Allow 2-3 Days
Equivalent to: GE20FO2RS GEH20ES2RS
In stock
Price Break
Description
DURBAL Maintenance Required Spherical-Plain Bearing with Seals - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes and 2RS lip seals on both sides. (Outer ring has a split from size 15) For use with high and alternating loads.Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
Wider joint ball and larger outside diameter compared to DGE_ES-2RS series, to enable higher load ratings and larger tilt angle
Equivalent: GE20FO2RS GEH20ES2RS
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 20mm
Technical
| d | 20mm |
|---|---|
| d1 | 25.2mm |
| D | 42mm |
| dk | 35.5mm |
| B | 25mm |
| C | 16mm |
| rs | 0.6mm |
| r1s | 0.6mm |
| tilt angle α | 17 deg |
| weight | 0.15kg |
| basic load rating dyn C | 48 kN |
| basic load rating stat Co | 240 kN |
| CN | 50-100 µm |
