SKU: DGE17FW-DURB

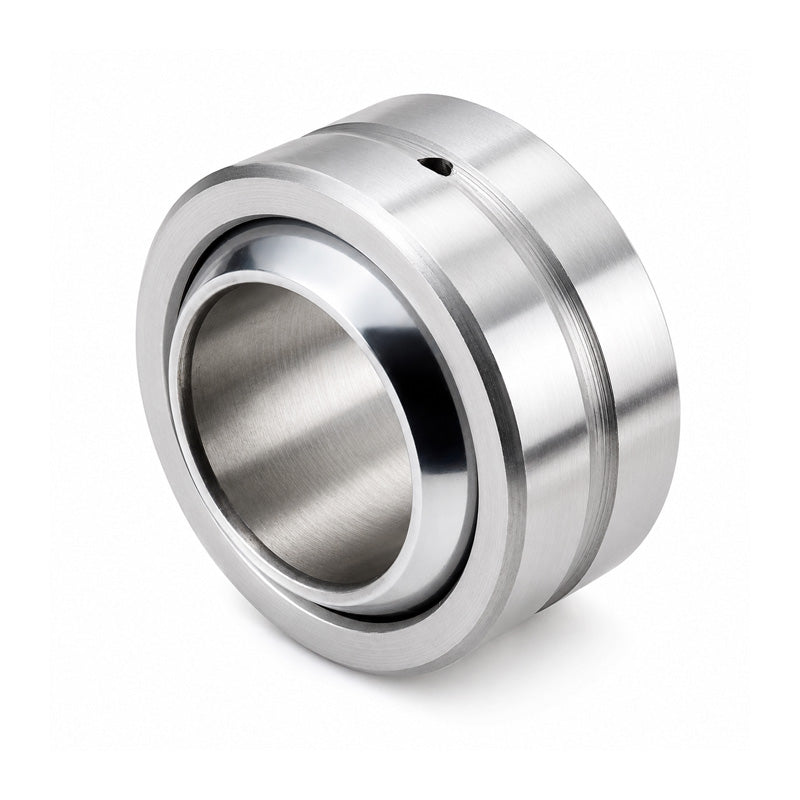

Durbal DGE17FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 17x35x20mm
Durbal DGE17FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 17x35x20mm
Regular price
Rs. 2,271.18
ex VAT
Regular price
Sale price
Rs. 2,271.18
ex VAT
Equivalent to: GE17FW GEH17C
In stock
Price Break
10+
Rs. 2,021.35
19+
Rs. 1,907.79
29+
Rs. 1,885.08
39+
Rs. 1,862.37
49+
Rs. 1,839.66
74+
Rs. 1,816.94
99+
Rs. 1,703.39
199+
Rs. 1,680.67
249+
Rs. 1,657.96
499+
Rs. 1,635.25
999+
Rs. 1,589.83
Couldn't load pickup availability
Description
Description
DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated steel outer ring lined with bronze - PTFE-composite. Suitable for use with high unidirectional loads. Sliding combination: Steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Wider joint ball and larger outside diameter compared to DGE_UK series, to enable higher load ratings and larger tilt angle
Up to size 12 joint ball is hard chromium plated
Equivalent: GE17FW GEH17C
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 17mm
- Material:
- PTFE Lined
Technical
Technical
| d | 17mm |
|---|---|
| d1 | 21mm |
| D | 35mm |
| dk | 29mm |
| B | 20mm |
| C | 12mm |
| rs | 0.3mm |
| r1s | 0.3mm |
| tilt angle α | 19 deg |
| weight | 0.083kg |
| basic load rating dyn C | 31 kN |
| basic load rating stat Co | 78 kN |
| radial clearance CN | 5-35 µm |
